Acute Ward Block, Chesterfield Royal Hospital

The Manser Practice Architects , Chesterfield, 2010


Subscribe now to instantly view this image

Subscribe to the Architects’ Journal (AJ) for instant access to the AJ Buildings Library, an online database of nearly 2,000 exemplar buildings in photographs, plans, elevations and details.

Already a subscriber? Sign in


Hufton & Crow (website)     Download Original

  • Location plan
  • Site plan
  • Basement plan
  • Typical floor plan
  • South east section
  • Section through wing
  • Section through link
  • East elevation
  • North elevation
  • West elevation
  • South elevation

Hospital extension to provide 96 beds in three vertically-stacked 32-bed wards

Each ward is arranged in the T-shaped plan with two clusters of patient rooms arranged around a nurse base, with a shared support hub. This rationalised plan aims to reduce staff travel times and release more time to care for patients. Accommodation is split equally between four-bed bays and single rooms, including isolation facilities.

The additional block is connected to the existing hospital streets with a glazed link bridge that incorporates full-height artist designed coloured glass fins that protect the privacy of patients in the adjacent existing ward rooms.

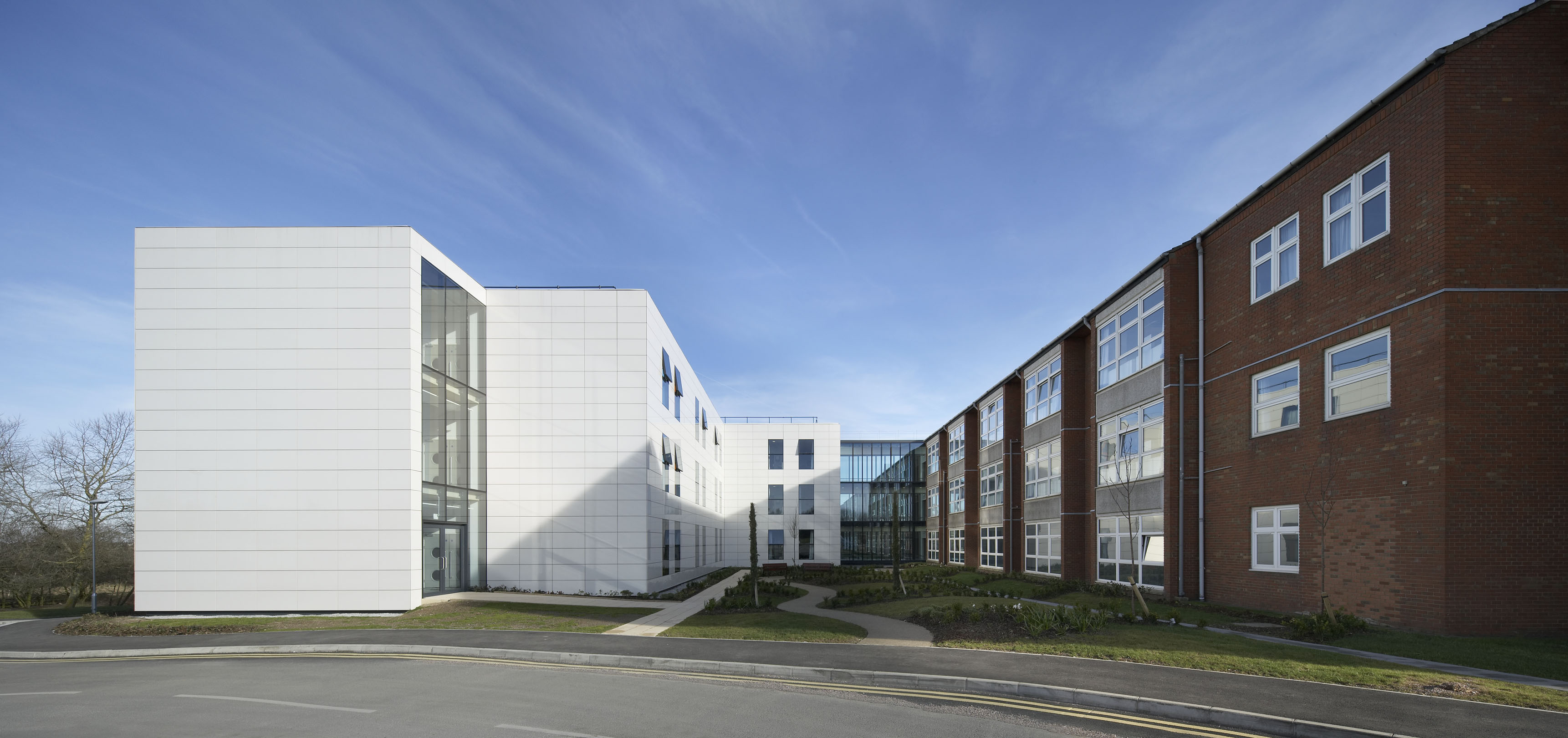

Externally the building is clad in ceramic tiles over a profiled louvre podium with large windows to provide the wards with natural light.

Details are robust yet refined; blinds integrated into glazed screens, negative step skirting details and hygienic metal door sets help to promote infection control.


  • Begun: Jul 2009
  • Completed: Aug 2010
  • Floor area: 4,056m2
  • Sector: Healthcare
  • Total cost: £7.2M
  • Procurement: Traditional utilising JCT 2005
  • CO2 Emissions: 129.38kg/m2/year
  • Address: Chesterfield Royal Hospital, Chesterfield Road, Calow, Chesterfield, S44 5BL, United Kingdom
