Bermondsey Island

Urban Salon, London, 2011



Subscribe now to instantly view this image

Subscribe to the Architects’ Journal (AJ) for instant access to the AJ Buildings Library, an online database of nearly 2,000 exemplar buildings in photographs, plans, elevations and details.

Already a subscriber? Sign in



Gareth Gardner (website)     Download Original

  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  • Location plan
  • Ground floor plan
  • First floor plan
  • Fourth floor plan
  • Section east:west
  • South elevation
  • West elevation
  • Detail of junction of tilebrick and render
  • Detail of tilebrick facade

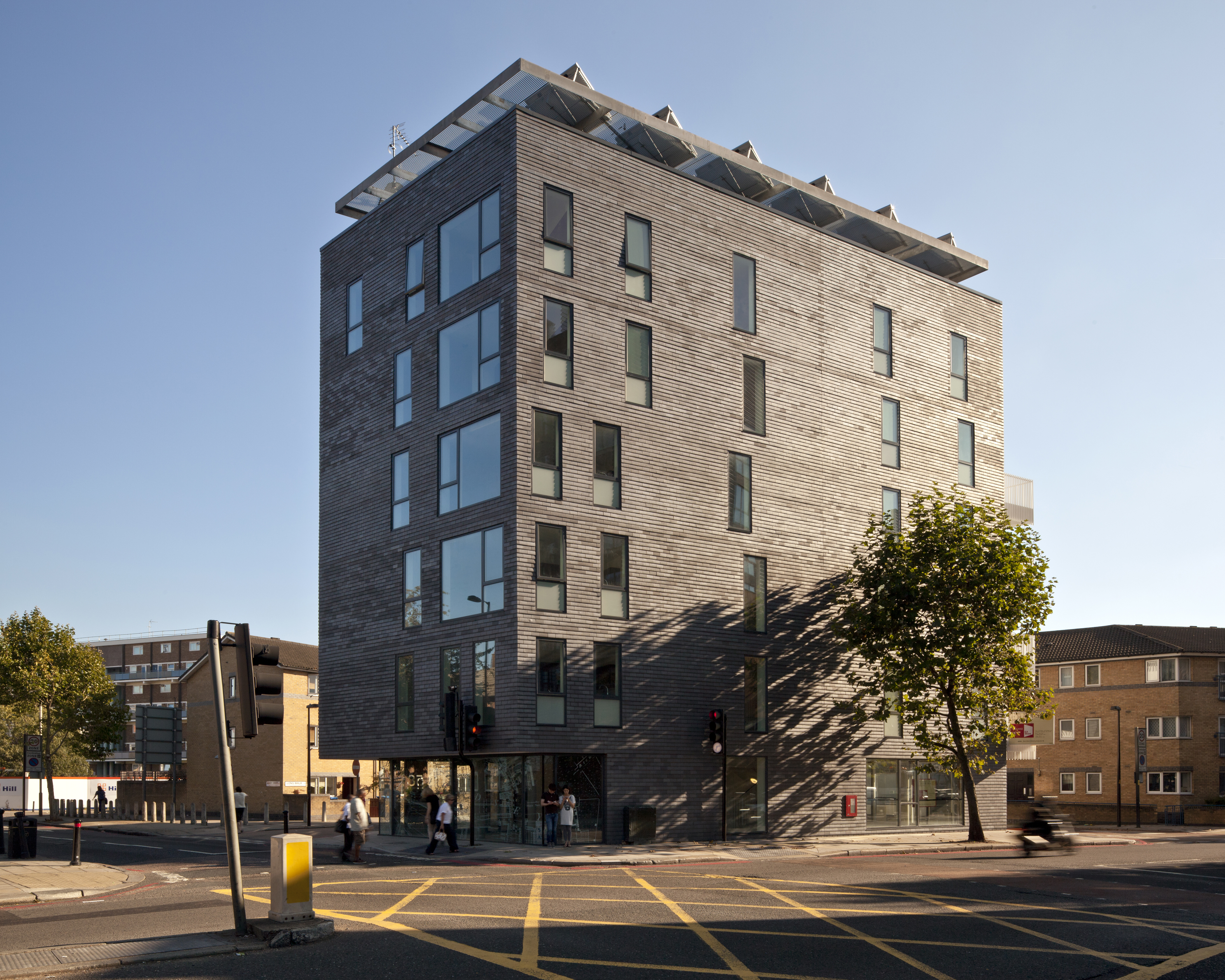

Social housing project, on a busy road interchange with an innovative brick façade

The five storey block forms part of the Bermondsey Square Redevelopment and provides 13 new affordable rented one and two bedroom units, above a commercial unit placed on the ground floor.

The two facades to the north and west of the housing block, that face the busy roads, are clad with black brick to form hard surfaces. Much of the internal space behind these brick walls is used for the stairs and bathrooms.

Two cranked and cut-back elevations address the quieter roads to the east and south, creating large openings for the living rooms and bedrooms behind.

These inward facing facades have a lightweight steel frame construction with white, externally rendered insulation. All window frames, vents, balcony handrails and rainwater pipes on these facades are colour matched with design elements that help the elevations retain their appearance.

The roof accommodates solar thermal panels in order to supply all flats with underfloor heating and the building has a rainwater harvesting system.

Data

  • Begun: Jul 2010
  • Completed: Sep 2011
  • Floor area: 1,217m2
  • Sector: Residential
  • Procurement: JCT Design and Build 2005, Revision 2 2009 with amendments
  • Address: Abbey Street, London, SE1 3UN, United Kingdom
