The Log Store

CAR design, Halifax, 2010



Subscribe now to instantly view this image

Subscribe to the Architects’ Journal (AJ) for instant access to the AJ Buildings Library, an online database of nearly 2,000 exemplar buildings in photographs, plans, elevations and details.

Already a subscriber? Sign in

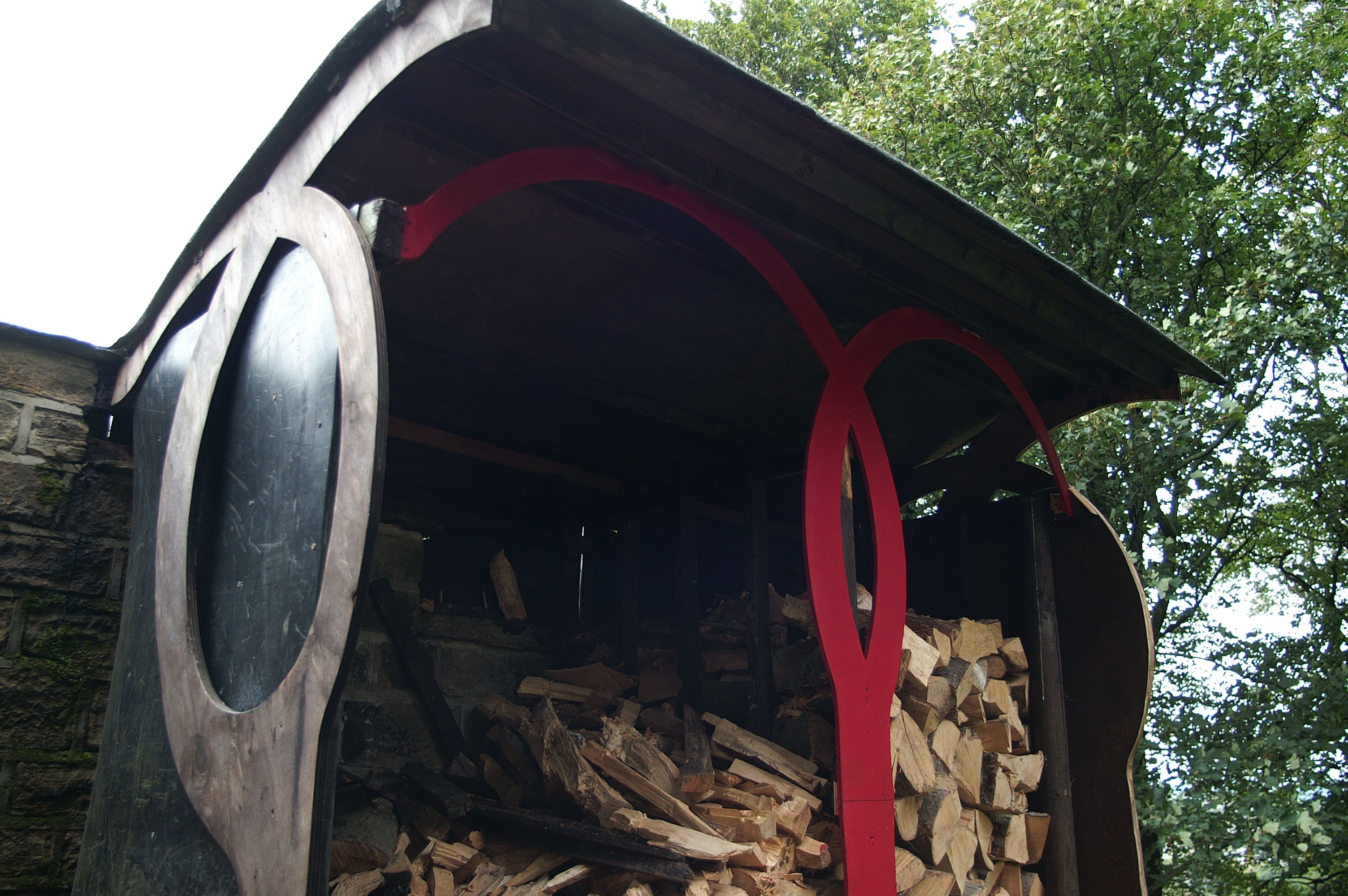

The overhanging curved roof creates a dry loading area for the user.

Charles Redman     Download Original

  • The overhanging curved roof creates a dry loading area for the user.
  • The view from up the drive.
  • The curved roof reflecting the shapes found in nature.
  • Side elevation taken from down the hill.
  • Front facade the curved shape resembling a tree.
  • Front support a vibrant red contrasting the rest of the project.
  • Plan
  • Section A-A
  • Front elevation
  • Existing side (north) elevasion.
  • Side (north) elevation.
  • Original log store
  • Main structure built of pine beams and 17mm plywood
  • working detail - roof construction

This log store is built to serve a house - Moonshine – which has no car access and whose sole source of heating is wood

It is sized to store one year’s fuel, and is sited to capture prevailing south westerly wind, and designed to encourage air flow through the drying timber, yet keep rain out. It is a home grown larch frame constructed on site and made entirely with dry joints with no foundations.

Data

  • Begun: Jun 2010
  • Completed: Aug 2010
  • Floor area: 3m2
  • Total cost: £500
  • Tender date: Feb 2010
  • Address: The Old Sunday School, Jagger Green Deen, The Old Sunday School, Jagger Green Deen, Halifax, HX4 9DQ, United Kingdom
