The Glass Wave

Andy Martin Associates, London, 2011



Subscribe now to instantly view this image

Subscribe to the Architects’ Journal (AJ) for instant access to the AJ Buildings Library, an online database of nearly 2,000 exemplar buildings in photographs, plans, elevations and details.

Already a subscriber? Sign in



James Merrell (website)     Download Original

  •
  •
  •
  •
  •
  •
  •
  • Plan and elevation
  • Section and detail
  •
  •
  •
  •
  •
  •
  •

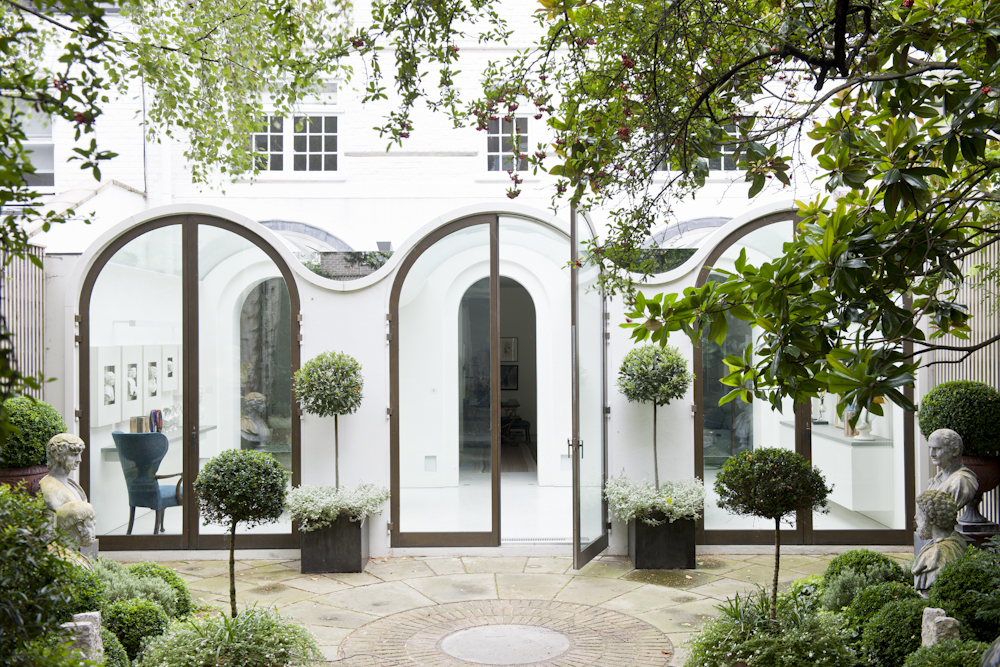

As part of the master plan to design a single residency in London W2, AMA were asked to look at the re-design of an existing faux Victorian Conservatory which was made up of three timber framed acrylic glazed barrel vaults

The solution was to celebrate the existing form by producing the same three barrel vaults using more technological and sustainable systems. AMA looked to design a free-formed wave of glass with no visible framing which would aid to softening the spacial experience and also retain the external formality which Westminster desired.

This design offered double the natural light into the living area than previously. The W2 conservatory has the largest radii of horizontally placed curved glass in the UK. AMA approached many of the largest manufacturers of curved glass in the UK and internationally, and were rebuffed. The glass had to be double glazed and toughened and then finally coated with a metal oxide to achieve the regulation U-Values.

Data

  • Begun: Jan 2009
  • Completed: Feb 2011
  • Floor area: 34m2
  • Sector: House
  • Total cost: £124,000
  • Funding: Private
  • Address: Clarendon Close , London, W2, United Kingdom
