Forestfield Housing

PRP Architects, Sussex, 1971



Subscribe now to instantly view this image

Subscribe to the Architects’ Journal (AJ) for instant access to the AJ Buildings Library, an online database of nearly 2,000 exemplar buildings in photographs, plans, elevations and details.

Already a subscriber? Sign in

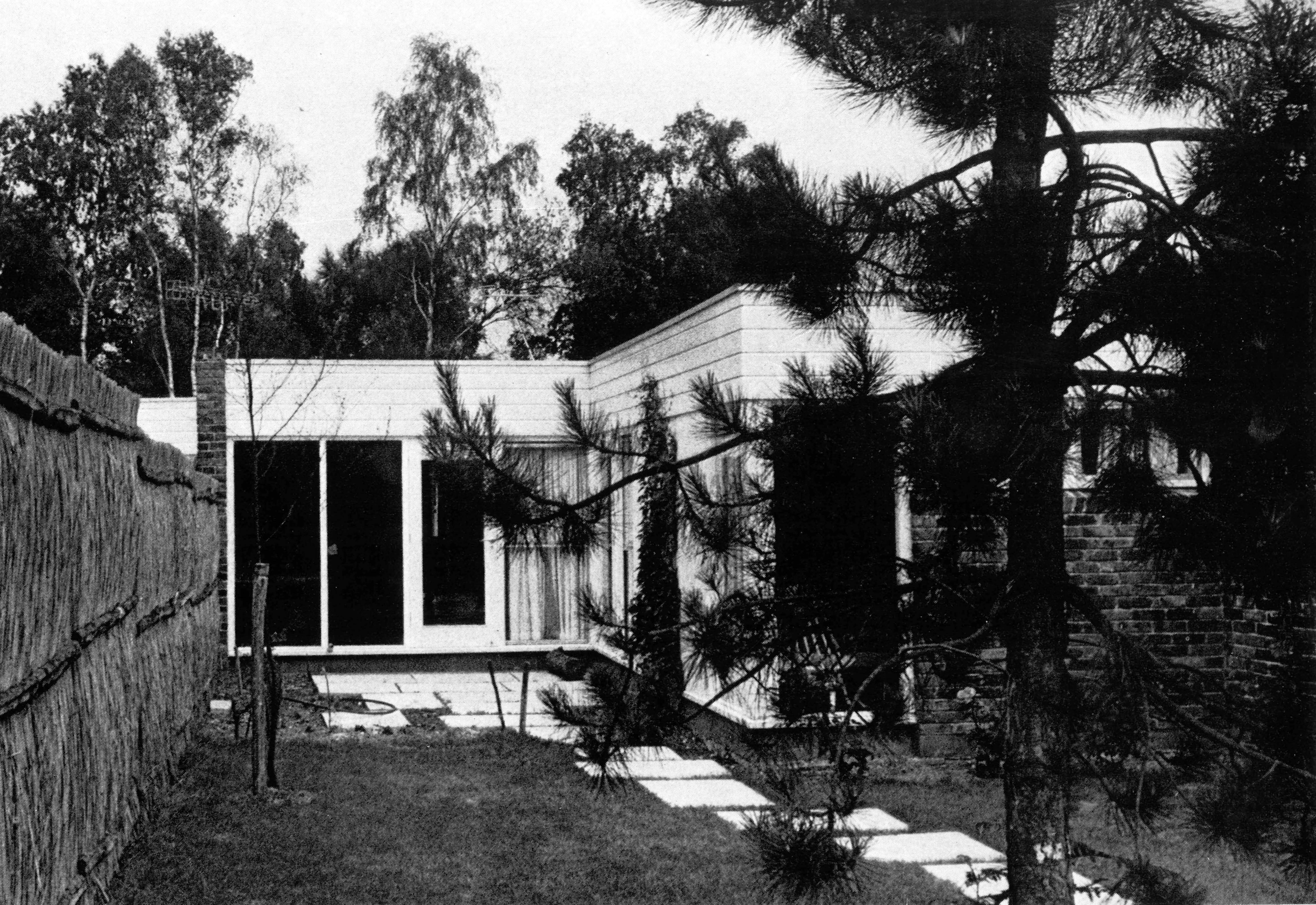

Garden view of patio house

    Download Original

  • Garden view of patio house
  • Living area and internal court of large patio house
  • Single-storey houses with ramp access are ebuilt over garages
  • Paved and planted courts provide safe playing areas
  • Planted court for communal use
  • Windowless upper rear wall of three bedroom house
  • Stairway and living room
  • Site plan
  • Single and two storey house plans
  • Single storey three and four bedroom patio houses
  • Axonometric of typical court

Low density housing estate containing 125-homes arranged around four courts on the edge of Tilgate Forest

The site is on the south edge of Crawley overlooking forestry. Brief requirements called for a maximum of 60 inhabitants per acre and a garage and parking space for every house.

A basic cluster of 25 houses has been used. The houses are grouped around a central garage space with provision for a number of cars, which is attached to the access road by a vehicular access court with parking space for cars and service vehicles. Houses around the perimeter of the site are generally single storey, enabling views of the woodland from houses both on the inside and outside of the scheme.

In total there are six variations of accommodation ranging one-bedroom to four-bedroom houses over one or two floors.

The structure consists of traditional loadbearing blockwork and brickwork, strip footings and a flat-joisted roof.

Data

  • Begun: 1970
  • Completed: 1971
  • Floor area: 11,650m2
  • Sector: Residential
  • Total cost: £524,000
  • Address: Furnace Green, Crawley, Sussex, RH10 6WB, United Kingdom
