King's Head Yard

Jonathan Greig, Bishop's Castle, 2011


Subscribe now to instantly view this image

Subscribe to the Architects’ Journal (AJ) for instant access to the AJ Buildings Library, an online database of nearly 2,000 exemplar buildings in photographs, plans, elevations and details.

Already a subscriber? Sign in

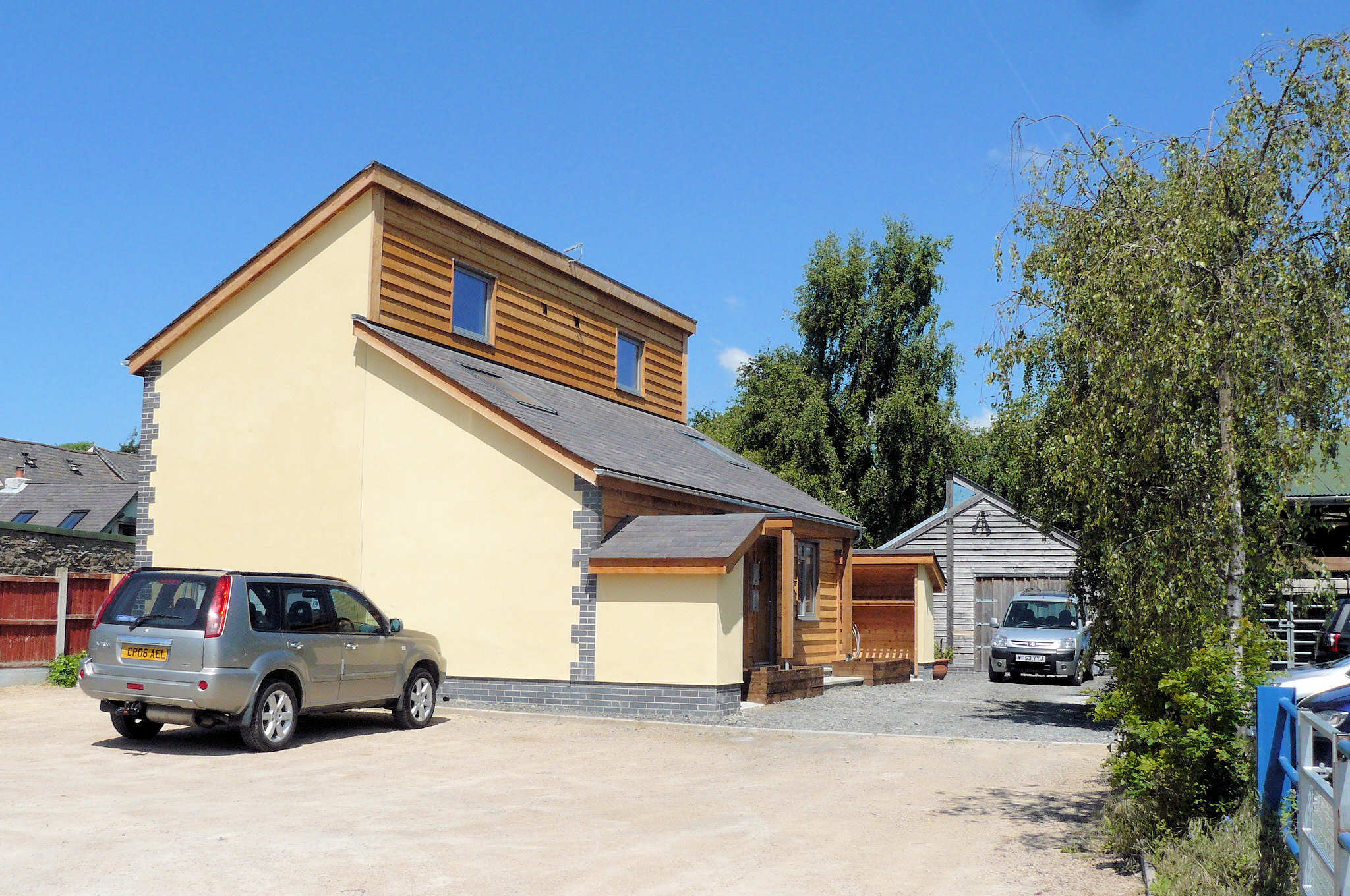

View from south

    Download Original

  • View from south
  • View from west
  • Porch
  • End detail
  • Downstairs living area
  • Balcony
  • Location plan
  • Ground floor
  • First floor plan
  • Stair section
  • Kitchen section
  • East elevation
  • South elevation
  • North elevation
  • Interior
  • Wall and roof details

Two affordable studio houses for rent

Two studio houses for Bishop's Castle Community Land Trust.

The houses belong to the community and are for rental to local people, and cannot be sold.

The site is in the centre of Bishop's Castle.

The building fills the site up to the boundaries to the North, South and West, with the East elevation only available for daylight.

The solution both spatially and in terms of daylight and fire escape is to use a first floor balcony open to the living area.

The houses are built to Code 3, "Lifetime Homes" and "Secured by Design" standards. They are insulated to Code 4 level.

The plan has the kitchen and bathroom on the ground floor with the living area to the East, and the sleeping gallery on the first floor balcony.

17 Local firms and individuals were involved in the project.

Energy data:

The walls are insulated with 20mm of warmcell blown insulation and the roof with 300mm. The windows are triple glazed.

The overall U value is calculated to be 0.85W/m2K.

The air tightness permeability tests gave a result of 1.22 m3/(h.m2)@50Pa in plot 1 and 1.02 m3/(h.m2)@50Pa in plot 2.

There is a heat recovery system, saving 1567 kWh/ year.

The heating requirement is estimated at 1096.55 kWh/year, with water heating at 1512.90 kWh/year.

The SAP rating is 82 giving a SAP band B. 1001.80 in plot 2.


  • Begun: Nov 2010
  • Completed: Aug 2011
  • Floor area: 111m2
  • Sector: House
  • Total cost: £118,680
  • Funding: Trust shareholders, Shropshire Council, Homes & Communities agency and Ecological building society
  • Tender date: Aug 2010
  • Procurement: Small works
  • CO2 Emissions: 9.12kg/m2/year
  • Address: 1 and 2 King's Head Yard, Bishop's Castle, SY9 5AA, United Kingdom
