St Mary's Car Park

Napper Collerton Partnership, Sunderland, Tyne And Wear, 1993



Subscribe now to instantly view this image

Subscribe to the Architects’ Journal (AJ) for instant access to the AJ Buildings Library, an online database of nearly 2,000 exemplar buildings in photographs, plans, elevations and details.

Already a subscriber? Sign in



    Download Original

  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  • site plan
  • Level one plan
  • Section
  • Section
  • Part plan of footbridge
  • Part elevation of footbridge
  • Isometric roof detail
  • Detail of standard ridge
  • cross section through footbridge

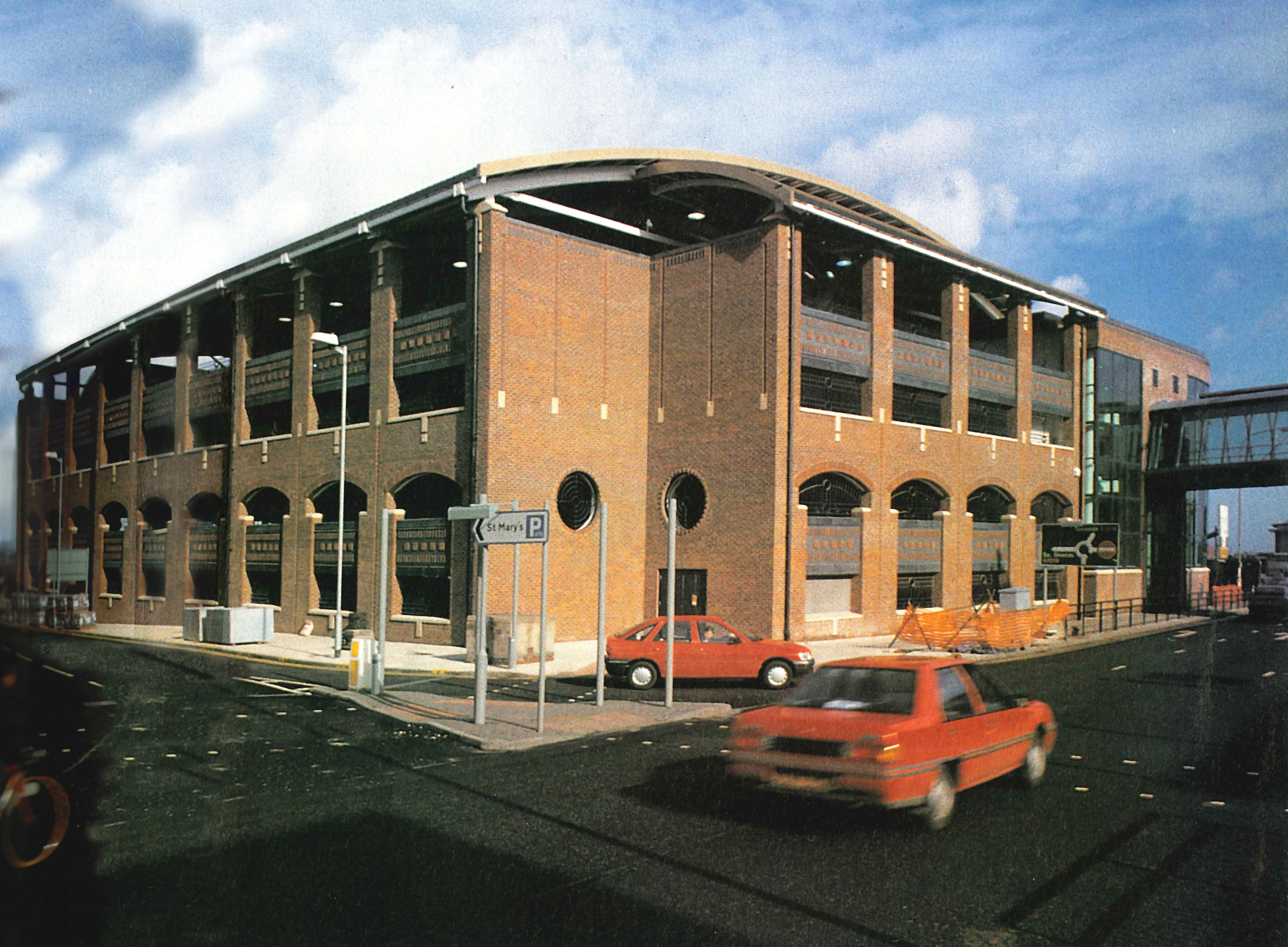

Multi-storey car park accompanied by a glazed footbridge to provide access to adjacent shopping centre

Constructed from a series of in-situ concrete frames and columns, the car park accommodates 484 vehicles over four open-plan tiers.

The formal separation of the building into two wings linked by a central, glazed core reflects the internal planning of the two main parking areas. Two metal-clad, shallow-curved roof arches spanning each of the wings makes the division of these areas further distinguishable from the exterior.

Internally, the parking areas are each served by a central ramp, glazed lifts and staircase housed in a glazed enclosure visible on the south elevation.

All elevations are clad in facing brick, with stone dressings around the double-height openings and parts of the roof parapet. Metal grilles are present on the openings of the lower two storeys for security purposes.

A glazed footbridge, suspended from a single roadside pylon at 5.7m above the dual carriageway, links the car park with the first floor of the neighbouring shopping arcade to provide convenient and secure pedestrian access.

Data

  • Begun: Oct 1992
  • Completed: Nov 1993
  • Floor area: 15,595m2
  • Sector: Transport
  • Total cost: £5.4M
  • Procurement: ICE (fifth edition)
  • Address: St Mary's Way, Sunderland, Tyne And Wear, SR1 3AH, United Kingdom
