Faustino Winery

Foster + Partners, Ribera del Duero, 2010



Subscribe now to instantly view this image

Subscribe to the Architects’ Journal (AJ) for instant access to the AJ Buildings Library, an online database of nearly 2,000 exemplar buildings in photographs, plans, elevations and details.

Already a subscriber? Sign in



Nigel Young (website)     Download Original

  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  • Site plan
  • Ground floor plan
  • Upper floor
  • Roof deck
  • Long section
  • Section through fermentation wing

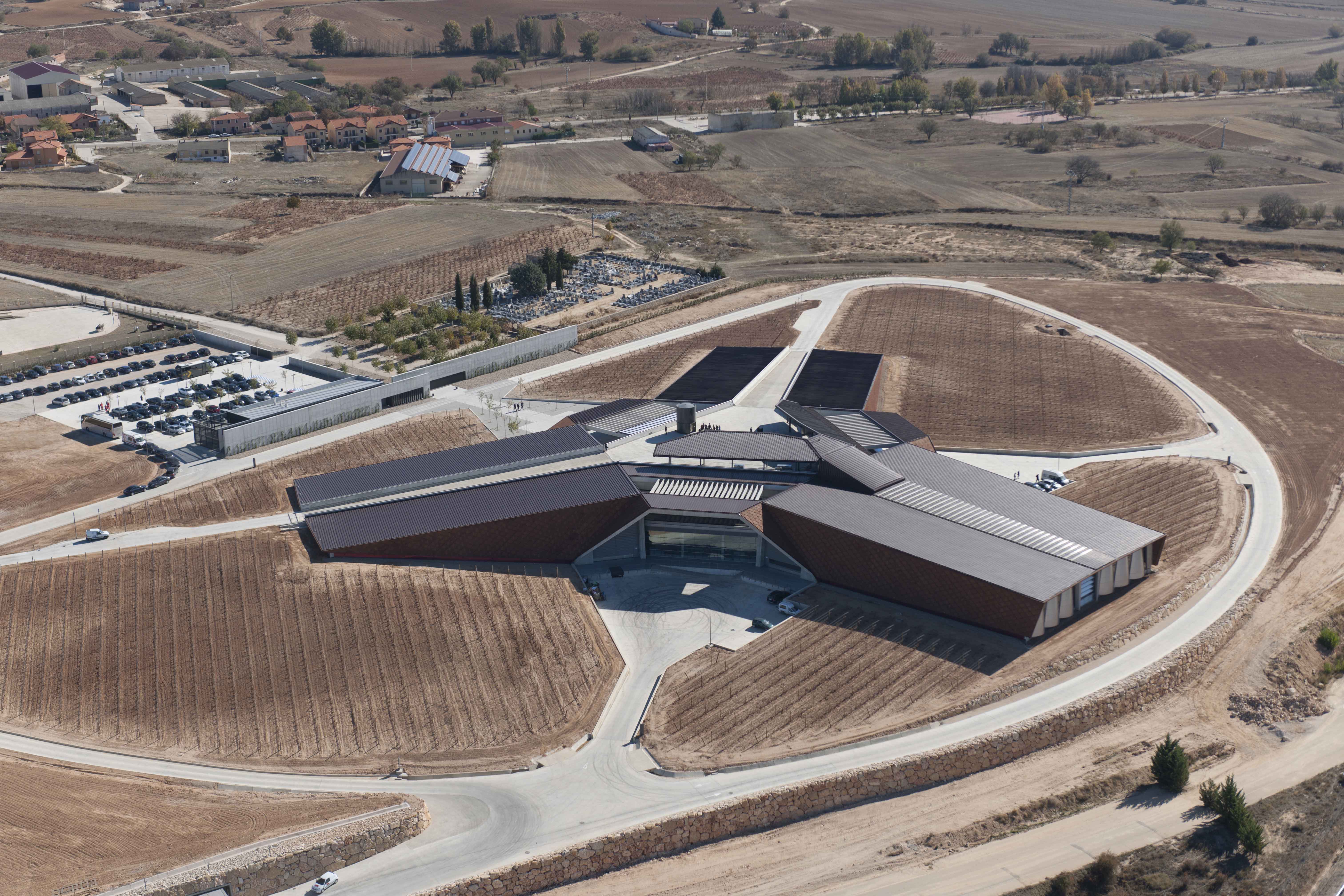

Winery with production arranged around a trefoil plan and a capacity of one million bottles per year

The plan expresses the three main stages of production: fermentation in steel vats; ageing in oak barrels; and maturation in bottles. At the core of the building are the visitor facilities and operations hub, where all stages of the production process can be controlled.

After harvesting, the grapes are delivered to the winery via a road that rises on to the roof, where they are dropped directly into the hopper, from where they progress through the production process.

The fermentation wing is exposed to the outside, allowing carbon dioxide to escape naturally, while the wings containing the barrel and bottle cellars are partly dug into the sloping site to create favourable conditions for the ageing process. This allows the building to exploit the thermal properties of the earth, and in conjunction with the thermal mass of the concrete structure, regulate the internal climate.

The roof canopy shades the glazed atria and exposed vats and incorporates photovoltaics. The concrete structure is clad in Corten steel shingles, which complement the tones of the vineyards.

A raised public gallery at the heart of the winery extends into glazed mezzanine areas, allowing visitors to see the different stages of production. Between the wings, reception and administration areas, with terraces and water pools overlook the vineyards.

Data

  • Begun: 2007
  • Completed: 2010
  • Floor area: 12,500m2
  • Sector: Industrial
  • Address: Gumiel de Izan, Ribera del Duero, Spain
