Telephone exchange extension

Alex Gordon & Partners, Swansea, 1971


Subscribe now to instantly view this image

Subscribe to the Architects’ Journal (AJ) for instant access to the AJ Buildings Library, an online database of nearly 2,000 exemplar buildings in photographs, plans, elevations and details.

Already a subscriber? Sign in

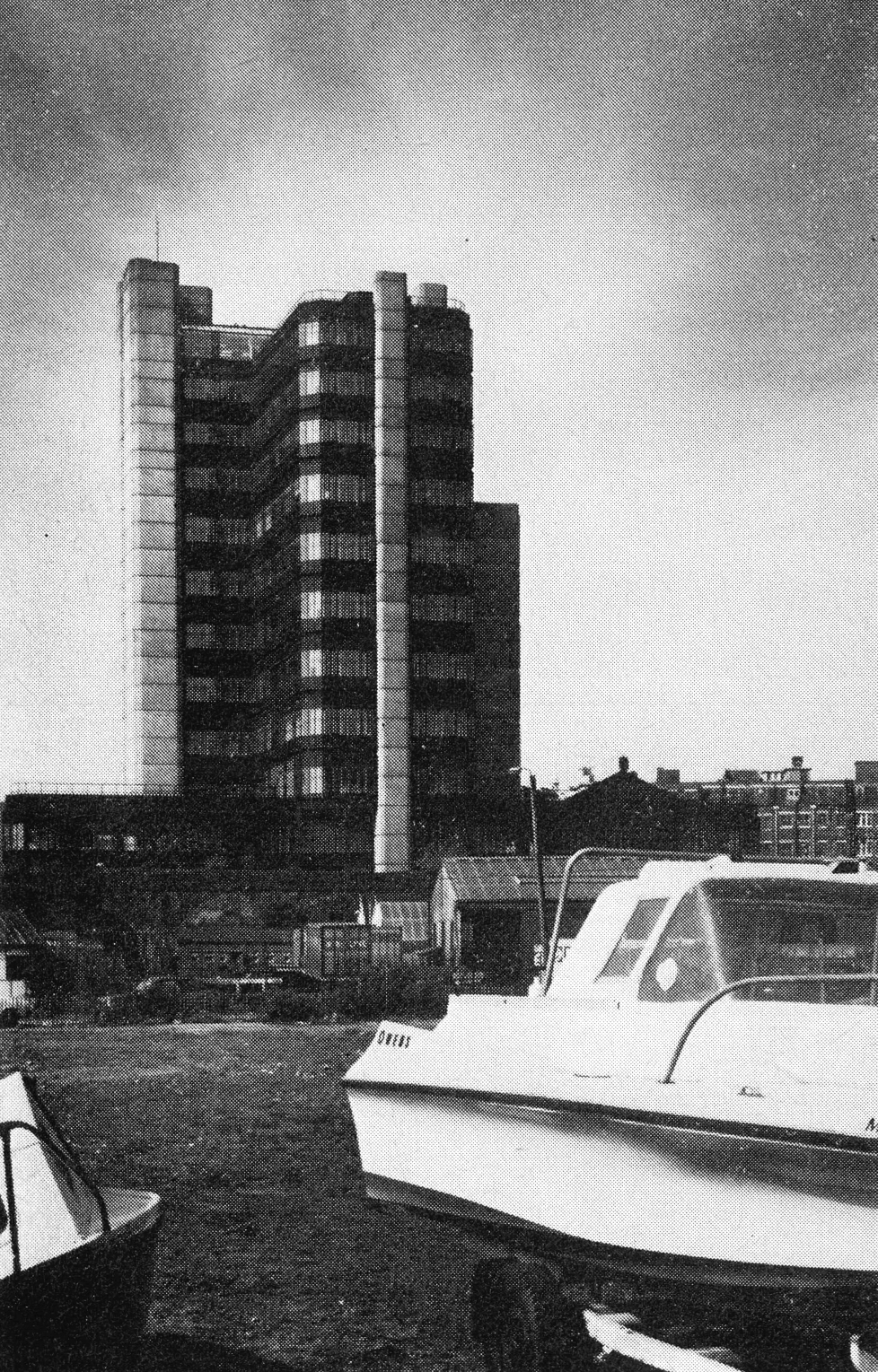

View from dock

    Download Original

  • View from dock
  • Extension rising above existing exchange
  • Junction of existing and additional building
  • Roof view
  • Swansea
  • Site plan
  • Ground floor plan
  • First floor plan
  • Seventh and eighth floor plan
  • Ninth floor plan
  • Tenth floor plan
  • 11th floor plan
  • 12th floor plan
  • Roof plan
  • Section B- B
  • Section A-A

Additional building to the original post-war exchange comprises a three-storey block and a twelve-storey tower following a T-shaped plan

The horizontal bar of the T is the low-rise brick structure block that runs back from a frontage of the Strand. The vertical stroke is the twelve-storey, 58 m high slab that juts forward toward the street.

Due to heavy floor loads, the apparatus floors are allocated on the eight lower floors. This layout concentrates the main work force at the top of the tower locating the offices, welfare and service spaces on the last three floors. Three concrete towers, with a ribbed external finish, rise above the high-rise block’s roofline to house the service cores.

The façade responds to wind conditions by the use of a double-skin system. The outer skin is composed out of clear and black armour-clad glass panels acting as a rain shield while the inner layer, with close-fitting vertical sashes, provides a seal for the control of the internal environment.

The equipment, installed in the apparatus rooms, determined the bay dimensions of the reinforced concrete frame.


  • Begun: May 1968
  • Completed: Nov 1971
  • Floor area: 1,320,539m2
  • Sector: Office
  • Total cost: £926,287
  • Tender date: Feb 1968
  • Procurement: Form CCC/ Wks/ 1 lump sum
  • Address: Strand Row, Swansea, SA1 2AE, United Kingdom

Professional Team
