Learning Resource Centre, Trafford College

Roger Stephenson Architects, Altrincham, 2011



Subscribe now to instantly view this image

Subscribe to the Architects’ Journal (AJ) for instant access to the AJ Buildings Library, an online database of nearly 2,000 exemplar buildings in photographs, plans, elevations and details.

Already a subscriber? Sign in



Daniel Hopkinson (website)     Download Original

  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  • Site plan
  • Ground floor plan
  • First floor plan
  • Second floor plan
  • Mezzanine level plan
  • Roof plan
  • Section B-B
  • Section C-C
  • Section F-F
  • Section G-G
  • North elevation
  • East elevation
  • South elevation
  • West elevation
  • Red line plan

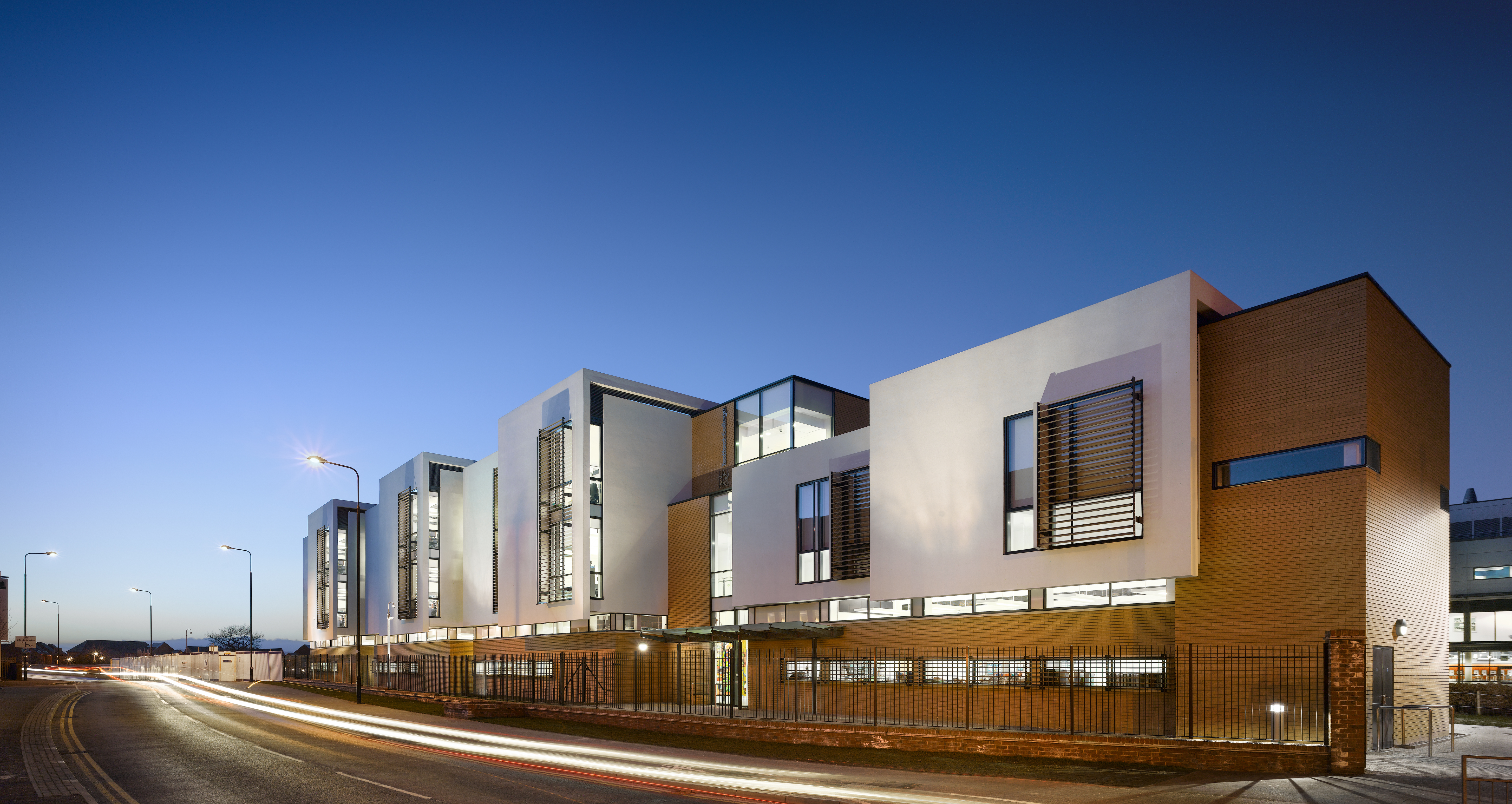

Addition to a college of a library, A-Level centre and 60 classrooms grouped around a central courtyard

The buildings, which combine with the existing buildings to create a central campus courtyard, replace the library and 1950/60s teaching accommodation to provide 8961m2 of teaching space.

A series of teaching houses sit along the street frontage, the linear form building is broken down into five blocks. A block arranged around a three storey atrium, on a broader plan, completes the new build.

The construction utilizes a steel frame with exposed pre-cast concrete slabs, for high thermal mass, wrapped in a lightweight skin.

Concrete was removed from the demolition of the existing buildings, graded on site and re-used for the piling mat of the new construction.

Yellow brickwork is used as a common thread between the new and existing buildings. The first and second floors are white rendered and the use of timber is continued from other buildings on the campus.

Data

  • Begun: Jun 2008
  • Completed: Feb 2011
  • Floor area: 8,961m2
  • Sector: Education
  • Total cost: £22M
  • CO2 Emissions: 31.62kg/m2/year
  • Address: Trafford College, Manchester Road, Altrincham, WA14 5PQ, United Kingdom

Professional Team
