Blue Door

Hall + Bednarczyk Architects, Monmouthshire, 2010



Subscribe now to instantly view this image

Subscribe to the Architects’ Journal (AJ) for instant access to the AJ Buildings Library, an online database of nearly 2,000 exemplar buildings in photographs, plans, elevations and details.

Already a subscriber? Sign in

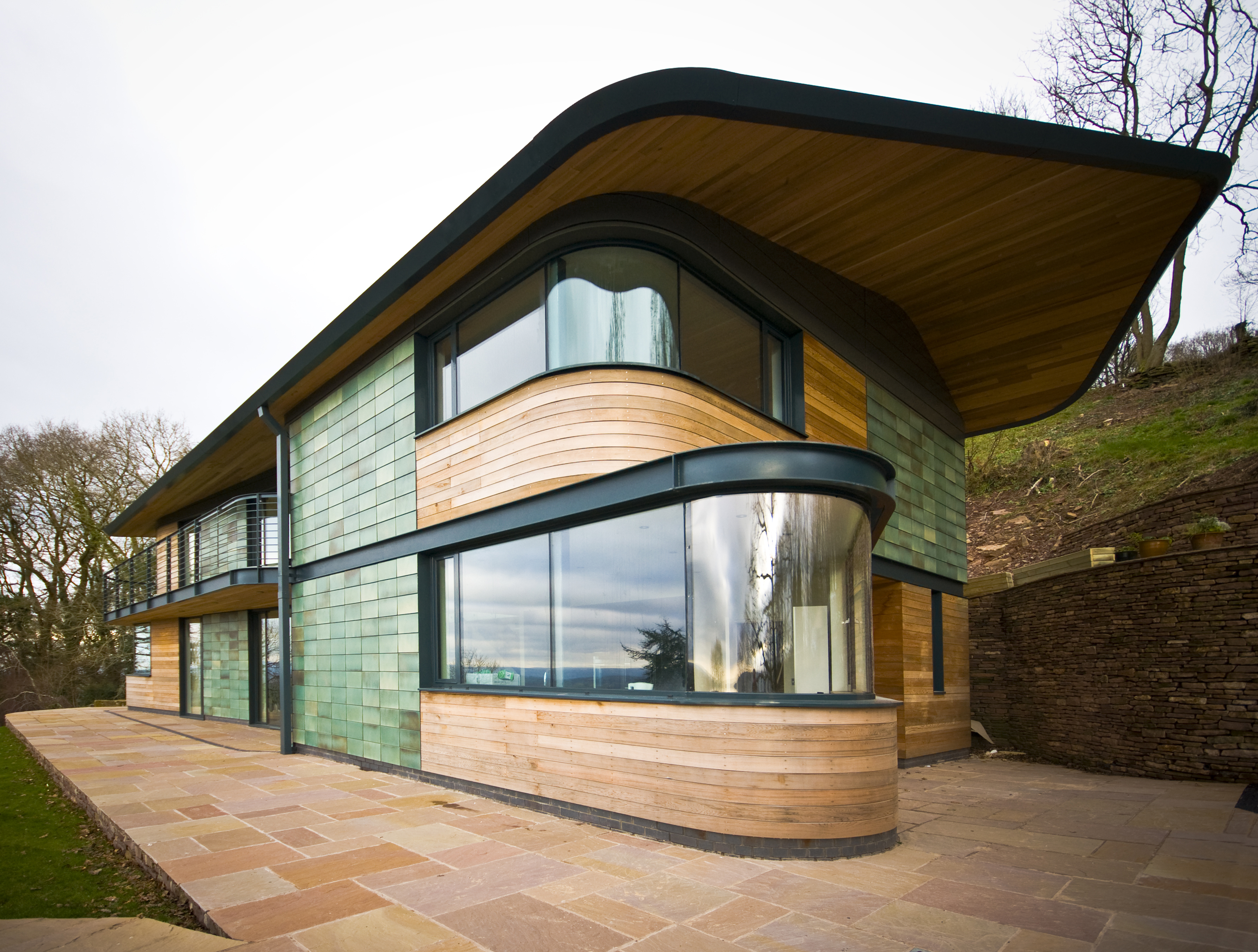

View from the south east

Leighton Morris     Download Original

  • View from the south east
  • Front view
  • Blue Door in the landscape
  • Blue Door in landscape
  • Ceramic tile close detail
  • Front panorama
  • Kitchen view
  • Stairs and landing
  • Stairs and lounge
  • Site plan
  • Ground floor plan
  • First floor plan
  • Roof plan
  • Section
  • Section
  • North elevation
  • East elevation
  • South elevation
  • West elevation
  • Axonometric

Energy efficient four-bedroom family home located in an Area of Outstanding Natural Beauty in rural Monmouthshire

Blue Door is a family home built on an elevated site on a steep hillside that is located within the protected landscape of Wye Valley. The design references the hillside topography and makes use of a reinforced concrete retaining wall at the rear of the building.

The open plan house employs a steel frame within an insulated timber stud envelope with lots of glazing. There is a top-lit gallery on the ground floor and balconies are formed from overhangs that also act as solar shading devices.

The external façade is clad with oxidised copper-coated ceramic tiles along with horizontal cedar boarding that blends into the hues of the hillside. The timber is intended to weather over time to a silver tone that compliments the green copper tiles.

A timber monocoque roof topped in zinc forms a wing that provides protection from excessive solar gain for the glazed double-height living room. The house is heated by a ground source heat pump augmented by a heat recovery system. The building achieved a Level 4 in Code for Sustainable Homes.

Data

  • Begun: Dec 2008
  • Completed: Jan 2010
  • Floor area: 256m2
  • Sector: House
  • Total cost: £430,000
  • Address: Blue Door, Far Hill, Monmouthshire, NP16 6QY, United Kingdom
