Cemetery Road

Project Orange, Sheffield, 2010



Subscribe now to instantly view this image

Subscribe to the Architects’ Journal (AJ) for instant access to the AJ Buildings Library, an online database of nearly 2,000 exemplar buildings in photographs, plans, elevations and details.

Already a subscriber? Sign in



Gareth Gardner (website)     Download Original

  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  • Site plan
  • Basement floor level plan
  • Ground floor plan
  • First floor plan
  • Second floor plan
  • Third floor plan
  • Roof level plan
  • Townhouse cross section
  • Cemetery Road elevation
  • Cemetry elevation
  • Eastern townhouses courtyard elevation
  • Front block rear elevation
  • Western townhouses courtyard elevation

High density four-storey block of nine townhouses and six flats flanking a raised courtyard garden plus three commercial units at ground level

The site borders the local conservation area to the south and east and is located within an established inner suburb, adjacent to the Sheffield General Cemetery.

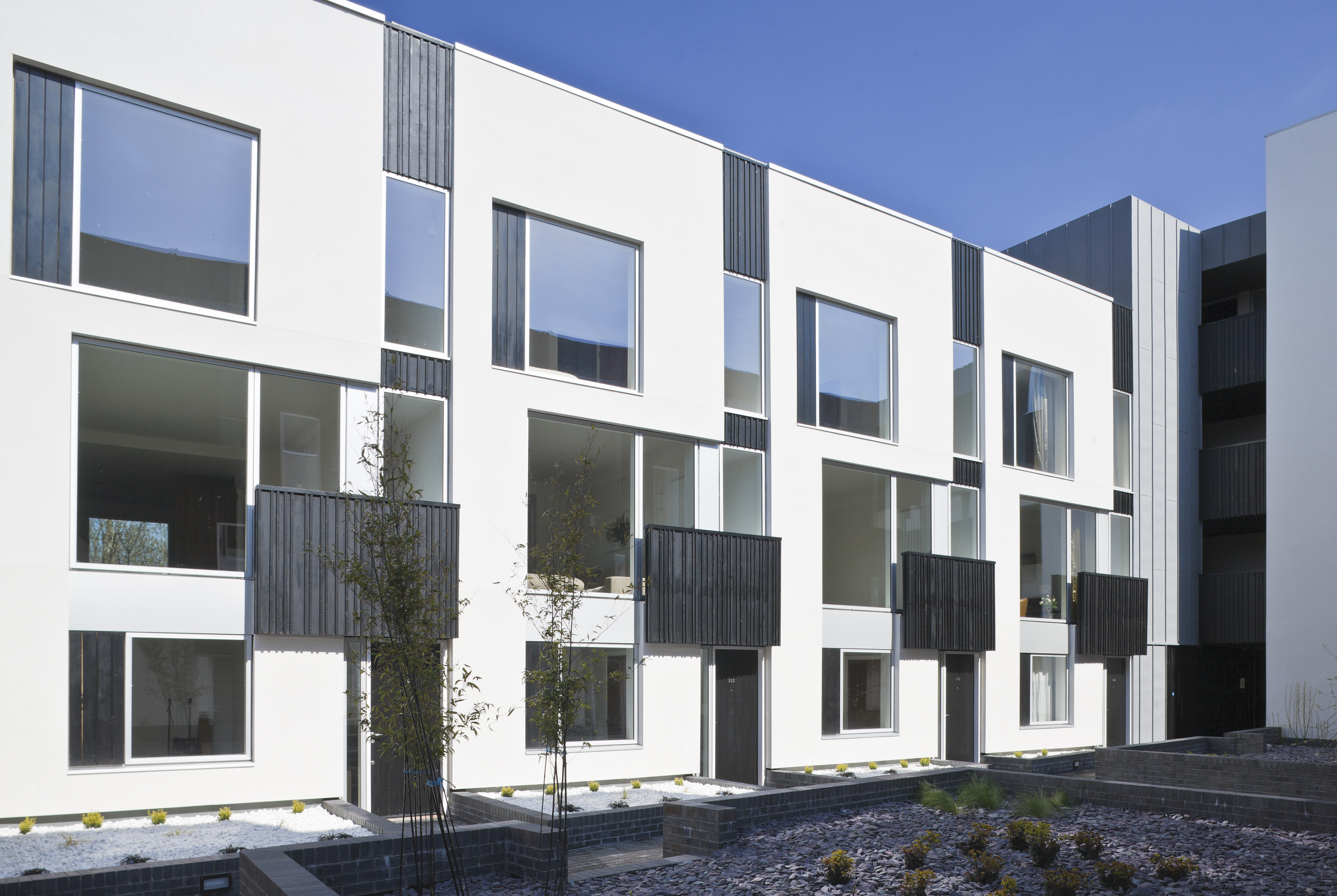

This high density project of nine townhouses flanking a raised courtyard garden, all above a shared semi basement car park, located to take advantage of the sloping site.

Three commercial units at ground level with six apartments and an 180m2 penthouse above are located within a four-storey block that fronts Cemetery Road. The elevations addressing the conservation area are clad in locally sourced traditional Yorkshire stone

The internal arrangements of the two blocks of houses are configured to maximise privacy between neighbours with the principal habitable rooms of the easterly block facing the staircases and ancillary accommodation to the rear across the courtyard.

Data

  • Begun: Jan 2009
  • Completed: Mar 2010
  • Floor area: 2,889m2
  • Sector: Residential
  • Total cost: £3.2M
  • Procurement: Bespoke Management form using a combination of JCT05 IFC and JCT DB 05
  • CO2 Emissions: 50.9kg/m2/year
  • Address: Cemetery Road, Sheffield, S11 8FT, United Kingdom
