Hong Kong and Shanghai Bank

Foster + Partners, Hong Kong, 1985


Subscribe now to instantly view this image

Subscribe to the Architects’ Journal (AJ) for instant access to the AJ Buildings Library, an online database of nearly 2,000 exemplar buildings in photographs, plans, elevations and details.

Already a subscriber? Sign in

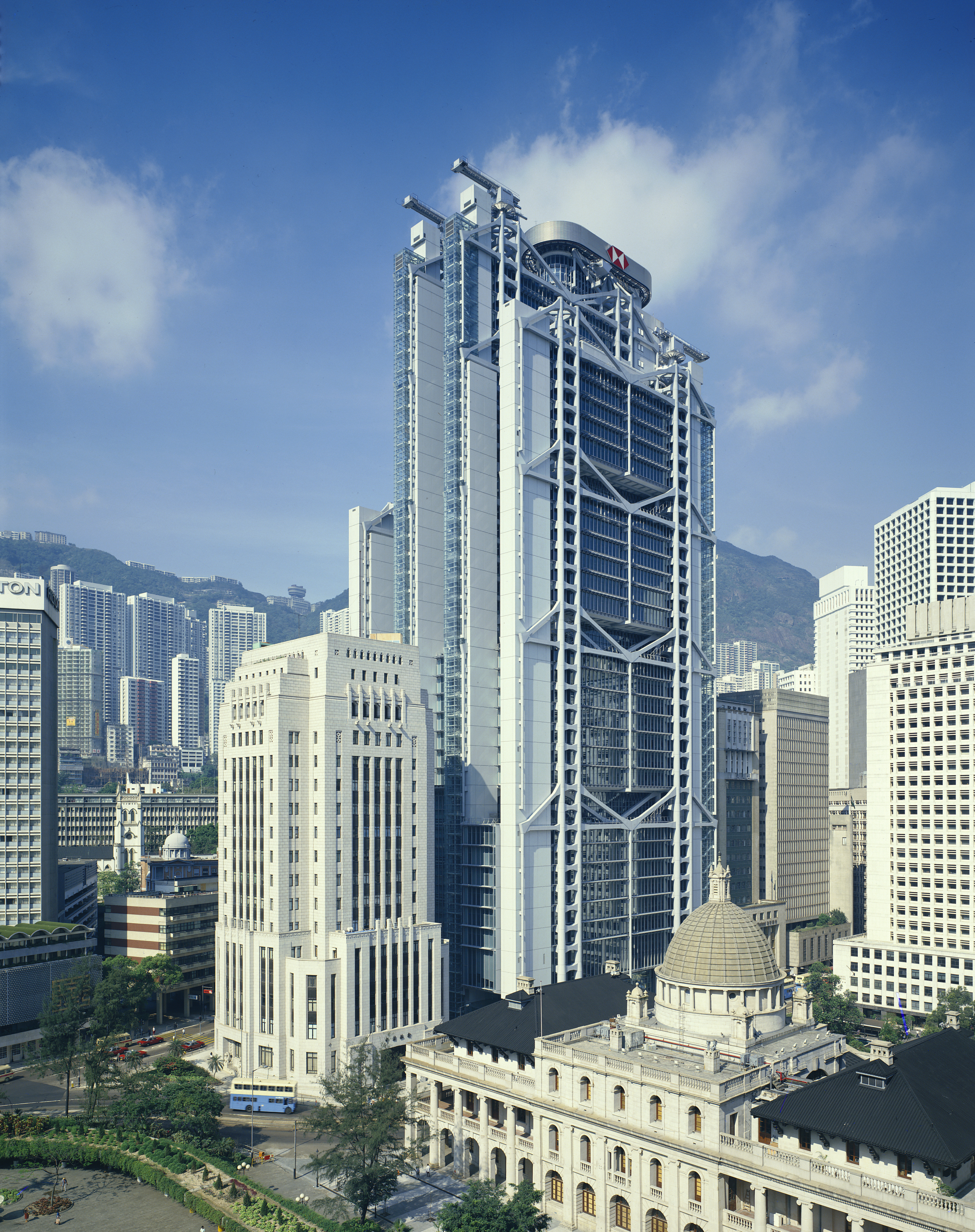

The steel and glass structure stands out in its context

Ian Lambot     Download Original

  • The steel and glass structure stands out in its context
  • Sunscoop shines light into the central atrium
  • Offices achieve views across the city from the glazed facade
  • Escalators are used for circulation between floors
  • Roof structure
  • The building and its context at night
  • Site plan
  • 1st floor
  • Typical plan
  • Two bay plan
  • Three bay plan
  • Apartment plan
  • Heliport
  • Elevation 1
  • Elevation 3
  • Elevation 4
  • Long section
  • Section crop
  • Section

Bank tower, using high degree of prefabricated elements with no internal supporting structure, allowing a 10 story atrium to maximise natural daylighting within a suspension structure

Scale and time requirements induced using prefabricated and factory-finished modules articulated in a stepped profile of three individual towers, respectively twenty-nine, thirty-six and forty-four storeys high, which create floors of varying width and depth and allow for garden terraces.

The service cores are situated on the perimeter so as to create deep-plan floors around a ten-storey atrium. A mirrored sunscoop reflects sunlight down through the atrium to the floor of a public plaza, allowing for maximum natural daylighting within the office spaces. From the plaza, escalators rise up to the main banking hall, which with its glass underbelly was conceived as a shop window for banking.

Bridges spanning between floors break down the scale of the building both visually and socially. Circulation through the building combines high-speed lifts to the reception spaces with escalators beyond, reflecting village-like clusters of office floors.


  • Begun: Jan 1983
  • Completed: Nov 1985
  • Floor area: 99,000m2
  • Sector: Office
  • Total cost: £433M
  • Address: Hong Kong, China
