Waterloo Bridge

Giles Gilbert Scott, London, 1946



Subscribe now to instantly view this image

Subscribe to the Architects’ Journal (AJ) for instant access to the AJ Buildings Library, an online database of nearly 2,000 exemplar buildings in photographs, plans, elevations and details.

Already a subscriber? Sign in

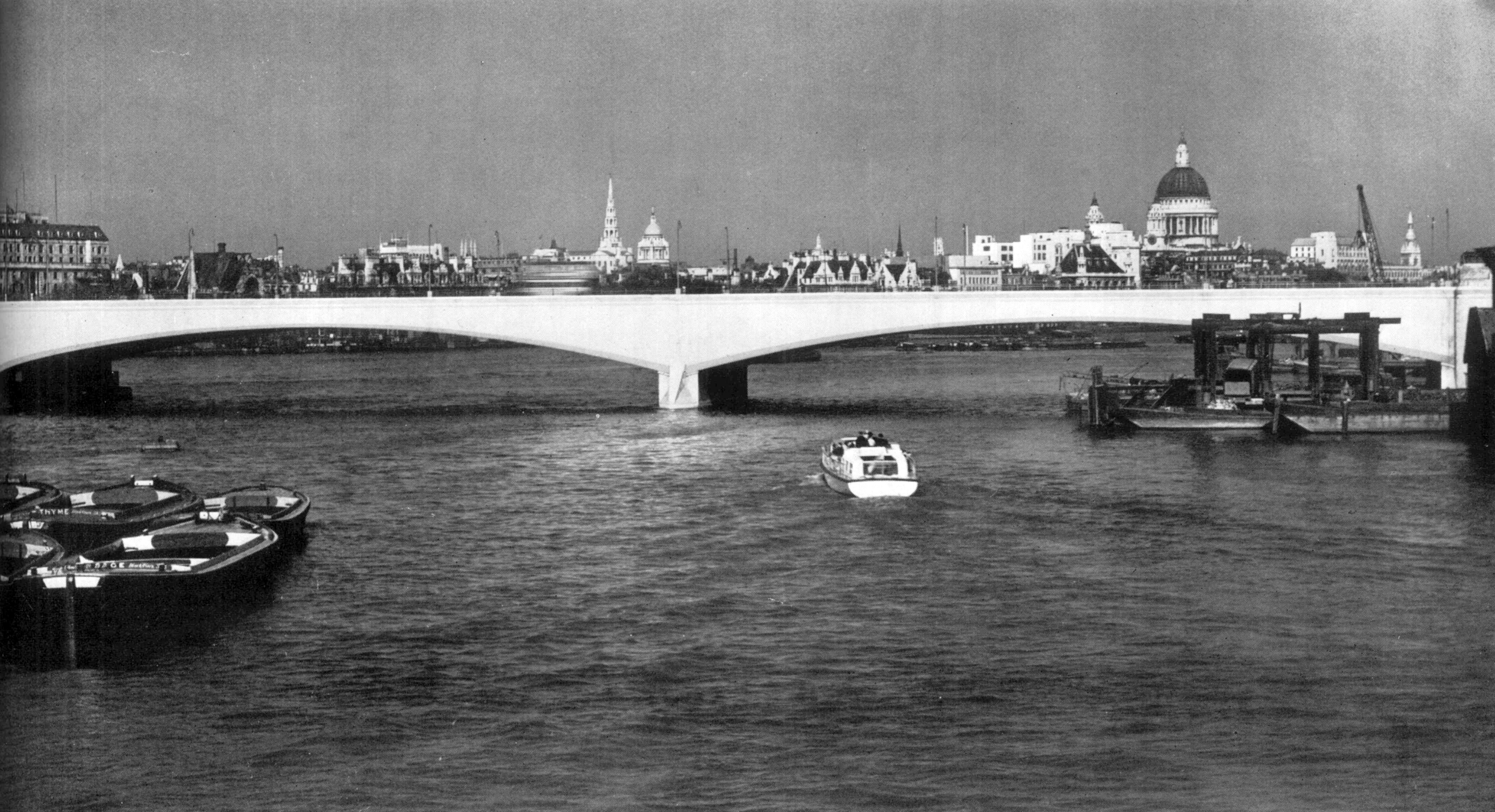

Panorama of Waterloo Bridge

Architectural Review     Download Original

  • Panorama of Waterloo Bridge
  • Air view looking towards Somerset House on the north bank
  • Air view looking towrads the south bank
  • View from the Embankment where span 1 carries the road to meet the Strand at the higher level
  • View from the south bank
  • One of the two staircases at the north end of the bridge showing the present handrail and lamp standard
  • Detail
  • Plan
  • Section

Five-span, concrete and Portland stone bridge for pedestrians and road traffic, between London's South Bank and Embankment

Replacing the old bridge that was demolished in 1934, the new model affords much better road and navigation facilities.

The bridge consists of girders, continuous over five spans, with a suspended section, 28 metres long, carried by cantilevers in the centre of span three. Reinforced concrete beams under the footways, left the road to be supported by transverse slabs.

To give the maximum headroom for navigation, the depths of the member of the surperstructure was kept as small as possible.

The bridge piers are founded in hard London clay at at a depth of about six metres below the river bed with foundations of solid concrete. The piers are reinforced concrete with a facing of Portland stone except between high and low water levels where they are faced with Cornish granite.

The spans are carried on bearing walls that are 25 meters long and 0.7m thick, which pass down the centre of the piers and are rigidly connected to the foundation. The spans merge into these bearing walls without any intervening rollers or other form of joint.

Data

  • Begun: May 1939
  • Completed: 1946
  • Sector: Public realm
  • Address: Waterloo Bridge, Embankment and Waterloo, London, SE1 8XT, United Kingdom
