Royal Commonwealth Pool

RMJM, Edinburgh, 1969



Subscribe now to instantly view this image

Subscribe to the Architects’ Journal (AJ) for instant access to the AJ Buildings Library, an online database of nearly 2,000 exemplar buildings in photographs, plans, elevations and details.

Already a subscriber? Sign in

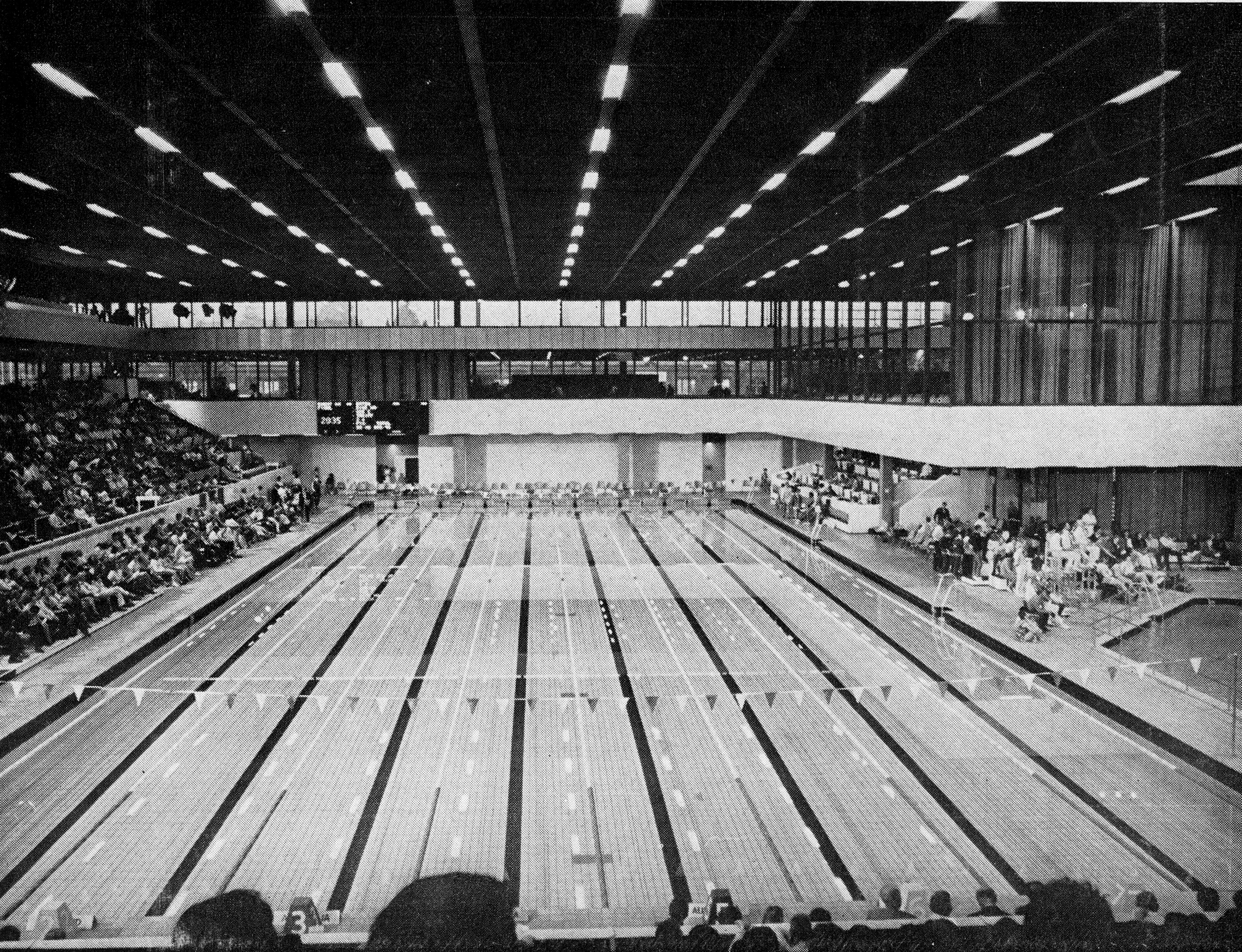

Main Pool

Architects' Journal     Download Original

  • Main Pool
  • Aerial view
  • Entrance with Arthur
  • Rear elevation
  • Entrance hall
  • Snack bar at entrance hall level
  • Diving pool
  • Heated bench
  • Site plan
  • Entrance level plan
  • Section A-A
  • Section B-B
  • Construction section
  • Detail of heated bench

Recreational and professional swimming and diving facility with a main pool, separate diving pool, teaching pool and a rowing training tank

The complex provides for teaching, recreational swimming and diving for a large number of users, and also training facilities and full provision to Olympic standard for competitions

A large entrance foyer serves as the hub of all the circulation in the building. From here the public have direct access to the changing rooms and to the teaching pool. The main changing area is subdivided into three zones, one for the men, one for the women and and one which can be made available to either sex, by locking alternative doors.

The pools were excavated below original ground level into a subsoil of stiff boulder clay. Reinforced concrete columns support the access level structure of twin steel beams carrying precast concrete 'T' units which form the access level floor.

Originally built for the 1970 Commonwealth Games, this has been the main swimming pool in Edinburgh for the last 40 years. The pool was closed to the public in June 2009 to undergo a two year refurbishment program costing approximately £37 million.

Data

  • Begun: Nov 1967
  • Completed: Nov 1969
  • Floor area: 13,408m2
  • Sector: Sports and leisure
  • Total cost: £1.4M
  • Tender date: Aug 1967
  • Procurement: Fixed price contract
  • Address: Royal Commonwealth Pool, 21 Dalkeith Rd, Edinburgh, EH16 5BB, United Kingdom
