Keyworth Centre, London South Bank University

BDP Civil and Structural Engineering, London, 2003


Subscribe now to instantly view this image

Subscribe to the Architects’ Journal (AJ) for instant access to the AJ Buildings Library, an online database of nearly 2,000 exemplar buildings in photographs, plans, elevations and details.

Already a subscriber? Sign in

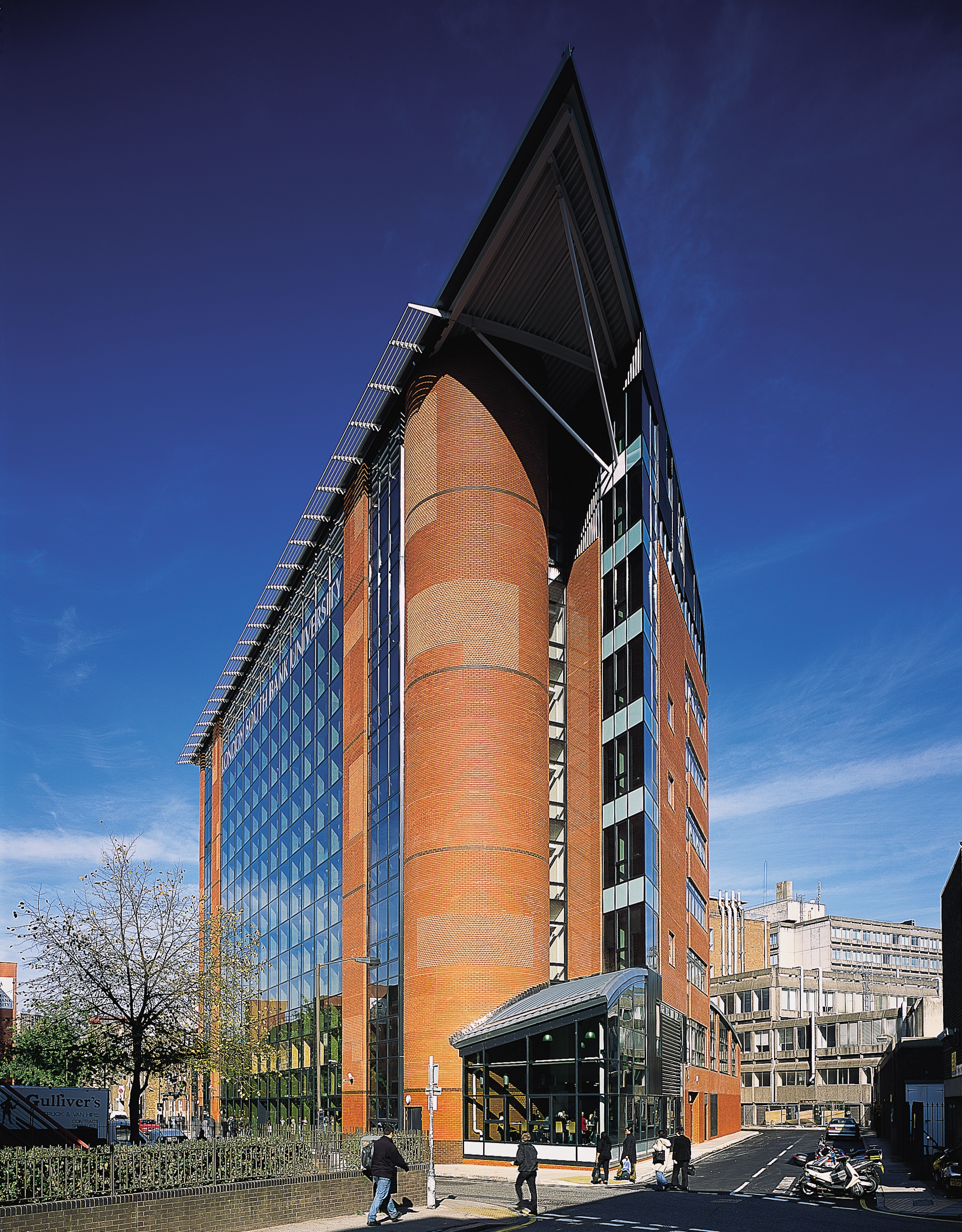

South corner

Martine Hamilton Knight/BDP (website)     Download Original

  • South corner
  • The atrium of the Keyworth Centre running alongside Keyworth Street, opposite other university buildings
  • Open balcony overlooking the atrium in one of the timber towers
  • Atrium
  • Offices form part of the atrium
  • View down atrium from upper floor
  • Top two floors to the rear of the building – once considered for the school of architecture
  • Ground floor plan
  • First floor plan
  • Fourth floor plan
  • Eighth floor plan
  • Section A-A
  • Early cardboard model of the building’s main ideas
  • Pod details
  • Detail sections

High-profile university teaching building with free-standing timber ‘pods’ within a large atrium

At nine storeys, the Keyworth Centre makes a dramatic gesture to the street with a glazed face fronting an atrium that runs the full height and most of the width of the building.

Internally, two sets of free-standing timber ‘pods’ with curved timber-clad walls are set symmetrically either side of the atrium. They are used for seminars and informal teaching; the storey-height spaces between them are enclosed with glass balustrades to form terraces which students can use as ‘break-out’ spaces, with views into the atrium and out through the glazed wall.

The facade is supported by timber props, and behind the glazing’s external metal cappings, the whole facade framing is a structural grillage of LVL (laminated veneer lumber).

The lobby is double-depth on ground and first floor, providing a space for students to gather. Above this double height setback, the south-west-facing atrium glazing is a source of daylight to teaching spaces on upper floors.

The typical upper floor plan has teaching rooms double-banked along a corridor at the rear, with the timber towers continue the teaching floorspace, connected at the lift lobbies.


  • Begun: Dec 2001
  • Completed: 2003
  • Floor area: 9,475m2
  • Sector: Education
  • Total cost: £17.2M
  • Procurement: Traditional 2-stage; JCT 98 with Contractors Design Portion
  • Address: Keyworth Street, London, SE1 6NG, United Kingdom
