Fisherman's Bridge, Lake District National Park

Honey Architecture, Cumbria, 2009



Subscribe now to instantly view this image

Subscribe to the Architects’ Journal (AJ) for instant access to the AJ Buildings Library, an online database of nearly 2,000 exemplar buildings in photographs, plans, elevations and details.

Already a subscriber? Sign in

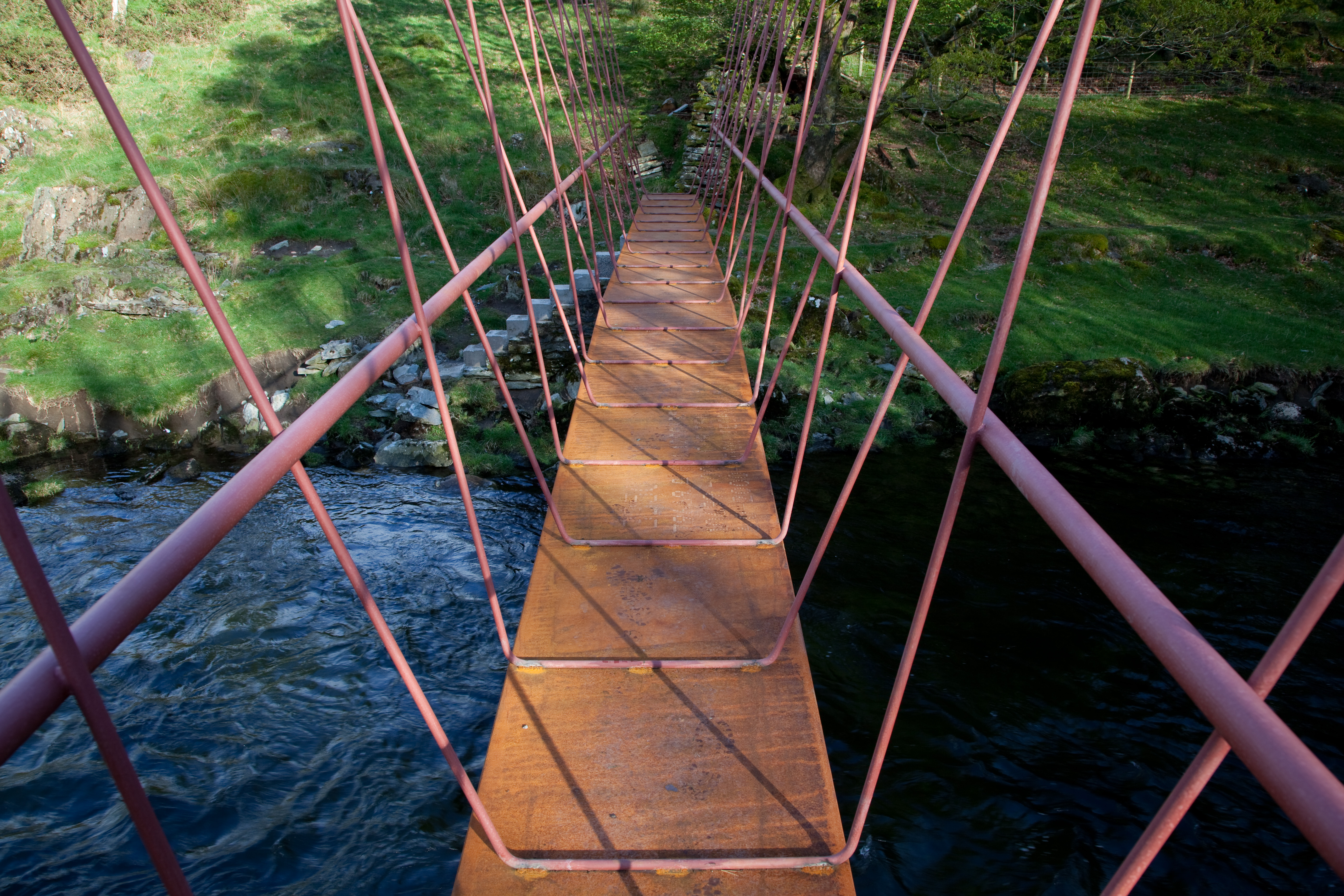

Fisherman's Bridge; uprights cut at specific heights play a note when struck

Ralph Parker     Download Original

  • Fisherman
  • Fisherman
  • Fisherman
  • Fisherman
  • Fisherman
  • Fisherman
  • Fisherman
  • Fisherman
  • Fisherman
  • Fisherman
  • Fisherman
  • Fisherman
  • From top; Plan, Elevation; Reflective-plan details
  • Fisherman
  • From top; Perspective, Side elevation, Perspective
  • Exploded axonometric showing structural components
  • Fisherman
  • Fishermans Bridge; Early concept sketch
  • Fishermans Bridge; Parametric structural CAD model
  • Fisherman
  • Fisherman
  • Fisherman

Rusted steel deck built above the flood level of a river in Lake District, allowing locals to cross all year round

Spanning 14 metres, the elemental shape of the bridge responds to the forces it carries; deep at mid span where the loads are greatest, and slender at the edges.

The rusted hues of the bridge complement the remarkable landscape. The deck is static and immutable; the uprights sway with the movement of people crossing.

Parametrically modelled and structurally optimised on the computer, the resultant form was unwrapped to produce steel templates that could be CNC plasma cut, being folded into shape and welded together to create the right monolithic deck. Fabrication and installation was by local crafts people.

Data

  • Begun: Sep 2008
  • Completed: Sep 2009
  • Floor area: 25m2
  • Sectors: Public realm, Transport
  • Total cost: £17,500
  • Funding: Private
  • Procurement: Negotiated Contract
  • Address: Church House, Ulpha, Broughton-in-Furness, The Lake District, Cumbria, LA20 6DX, United Kingdom
