Millau Viaduct

Foster + Partners, Millau, 2004



Subscribe now to instantly view this image

Subscribe to the Architects’ Journal (AJ) for instant access to the AJ Buildings Library, an online database of nearly 2,000 exemplar buildings in photographs, plans, elevations and details.

Already a subscriber? Sign in



Nigel Young     Download Original

  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  • Elevation and plan
  • Elevation 2
  • Elevation
  • Elevation, size comparison
  • Initial sketch
  • Initial Sketch
  • The viaduct in 2004 as the supplementary steel piers were being dismantled

Crucial transport link in the Paris to Barcelona motorway across a valley in south-west France

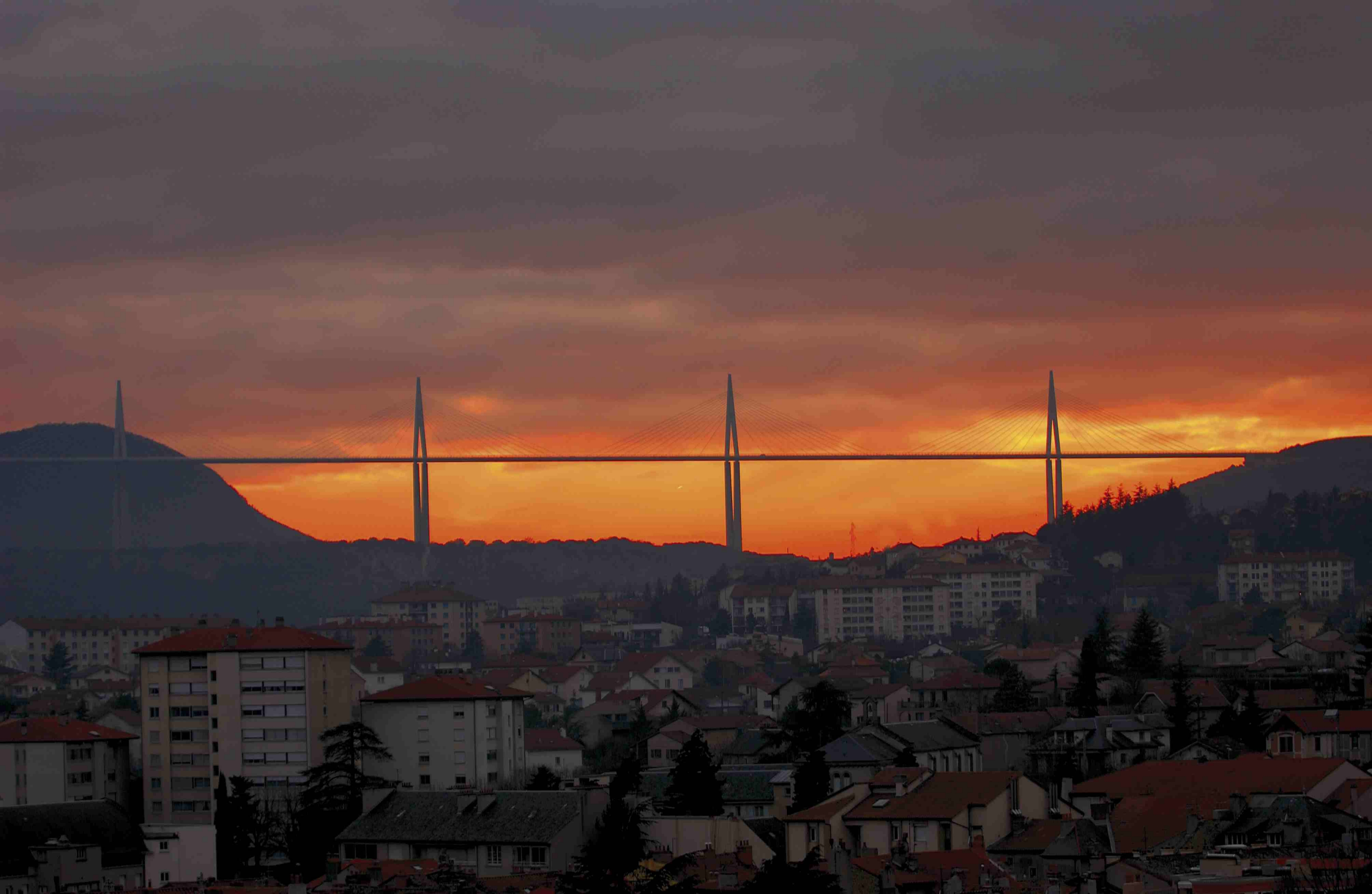

Designed with engineer Michel Virlogeux, the 2.46km-long cable-stayed bridge has the highest elevated roadway in the world. Supported on seven concrete piers of varying height, its deck is 270m above the River Tarn.

Each of its sections spans 342 metres and its columns range in height from 75 metres to 245 metres, with the masts rising a further 90 metres above the road deck.

A three per cent slope from south to north encourages drainage, while a gentle curve as the bridge approaches the northern plateau helps wind resistance. But both these factors work aesthetically too, accentuating the sense that the structure is tailored precisely to a specific site.

This marriage of the functional and aesthetic continues in the tapered concrete piers, which bifurcate towards the top to cope better with thermal movement in the steel deck (trapezoidal in section), while making the supports seem more slender.

Data

  • Begun: Oct 2001
  • Completed: 2004
  • Floor area: 78,720m2
  • Sector: Transport
  • Total cost: £220M
  • Address: Millau Viaduct, Millau, 12145, France
