Unity

Allford Hall Monaghan Morris, Liverpool, 2006



Subscribe now to instantly view this image

Subscribe to the Architects’ Journal (AJ) for instant access to the AJ Buildings Library, an online database of nearly 2,000 exemplar buildings in photographs, plans, elevations and details.

Already a subscriber? Sign in

The shorter of the towers contains office accommodation, the taller is residential

    Download Original

  • The shorter of the towers contains office accommodation, the taller is residential
  • Unity view from street
  • Unity Towers
  • Unity
  • View down Chapel Street looking towards the River Mersey and showing the commercial portion of the scheme. In contrast to the tunnel-form residential tower the office block is framed allowing for flexible internal space
  • Detail of cladding
  • Unity in context

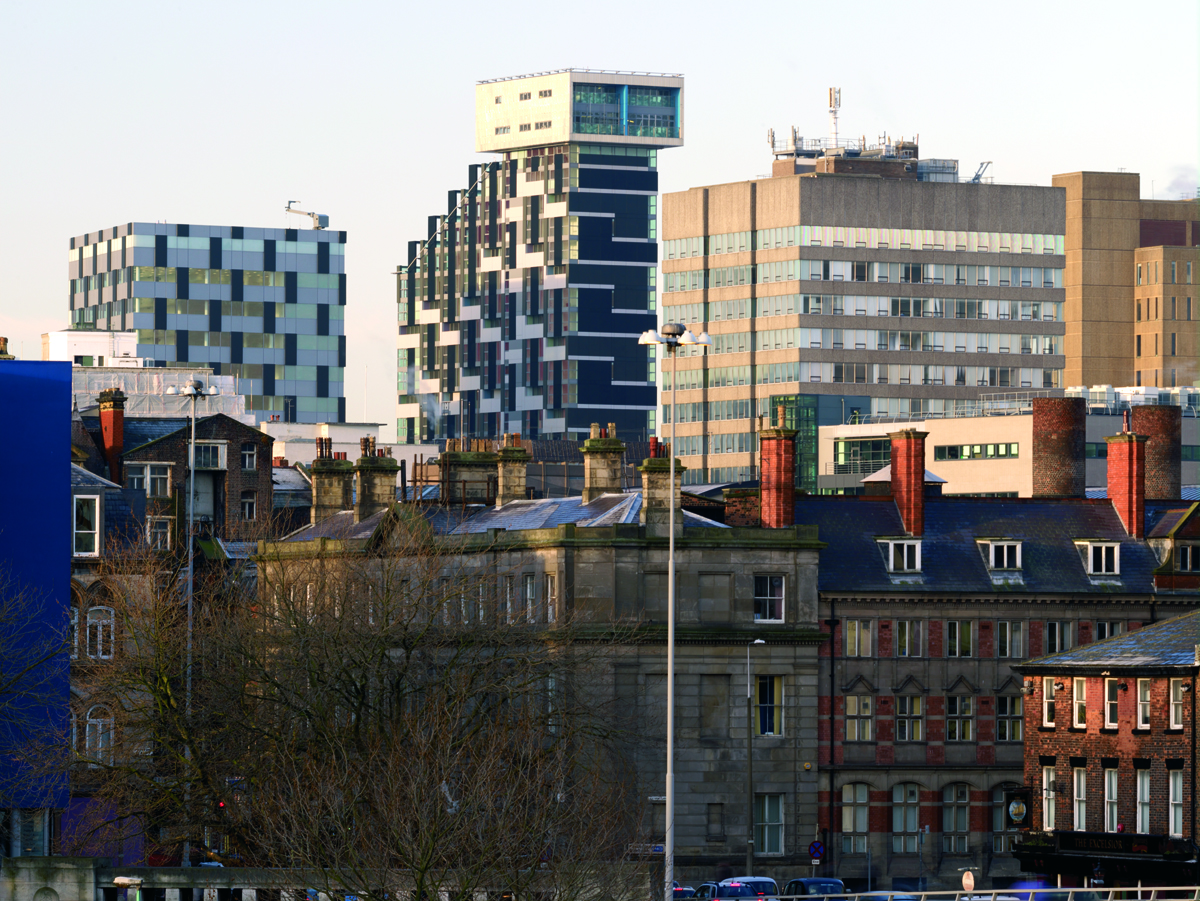

  • Skyline from across the river
  • Unity in context
  • The penthouse topping the stepped residential building makes a bold new addition to the city’s skyline
  • Unity, on Liverpool
  • The penthouse topping the stepped residential building makes a bold new addition to the city’s skyline
  • The penthouse topping the stepped residential building makes a bold new addition to the city’s skyline
  • Detail of facade
  • Ground plan
  • Typical plan
  • Typical upper plan
  • Roof plan
  • Flat types
  • Sections
  • Sections
  • Vorticist Edward Wadsworth’s paintings of World War One ‘dazzle ships’ inspired the patterning of the facades
  • Montage of site
  • Concept sketch
  • Facades of the office building
  • Facades of the office building
  • Colour is used on the residential interiors
  • Sketch
  • Concept sketch

Providing both residential and commercial space, the scheme has two towers with 161 apartments and 15,000m2 of accommodation for businesses

The Unity building consists of two towers: one residential, the other commercial, designed by Allford Hall Monaghan Morris. The site is adjacent to the Liver Building on Liverpool’s historic waterfront. The buildings are joined around a sun-trapping open space designed by muf. The office building is framed and the residential building tunnel-form. This makes the offices flexible and the apartments inflexible.

From a structural perspective the two towers are quite different, but both have combinations of pile and pad foundations to suit the sloping rock-head levels. Both towers have a deep basement constructed from a contiguous piled wall which was chosen to take the traffic surcharge loads from above and to avoid the need to prop the basement wall during construction.

The 27-storey residential tower has three levels of transfer structure:
he first consists of transfer walls above the car park; the second
f transfer walls over the eight-storey block of flats at the tower’s base; and the third is a transfer plate below the penthouse pod.

Data

  • Begun: Jun 2004
  • Completed: Jul 2006
  • Floor area: 36,470m2
  • Sectors: Residential, Office
  • Total cost: £60M
  • Procurement: Bespoke
  • Address: Unity Towers, 3 Rumford Place, Liverpool, L3 9BZ, United Kingdom
