Villa Valldoreix

Mangera Yvars, Barcelona, 2006


Subscribe now to instantly view this image

Subscribe to the Architects’ Journal (AJ) for instant access to the AJ Buildings Library, an online database of nearly 2,000 exemplar buildings in photographs, plans, elevations and details.

Already a subscriber? Sign in

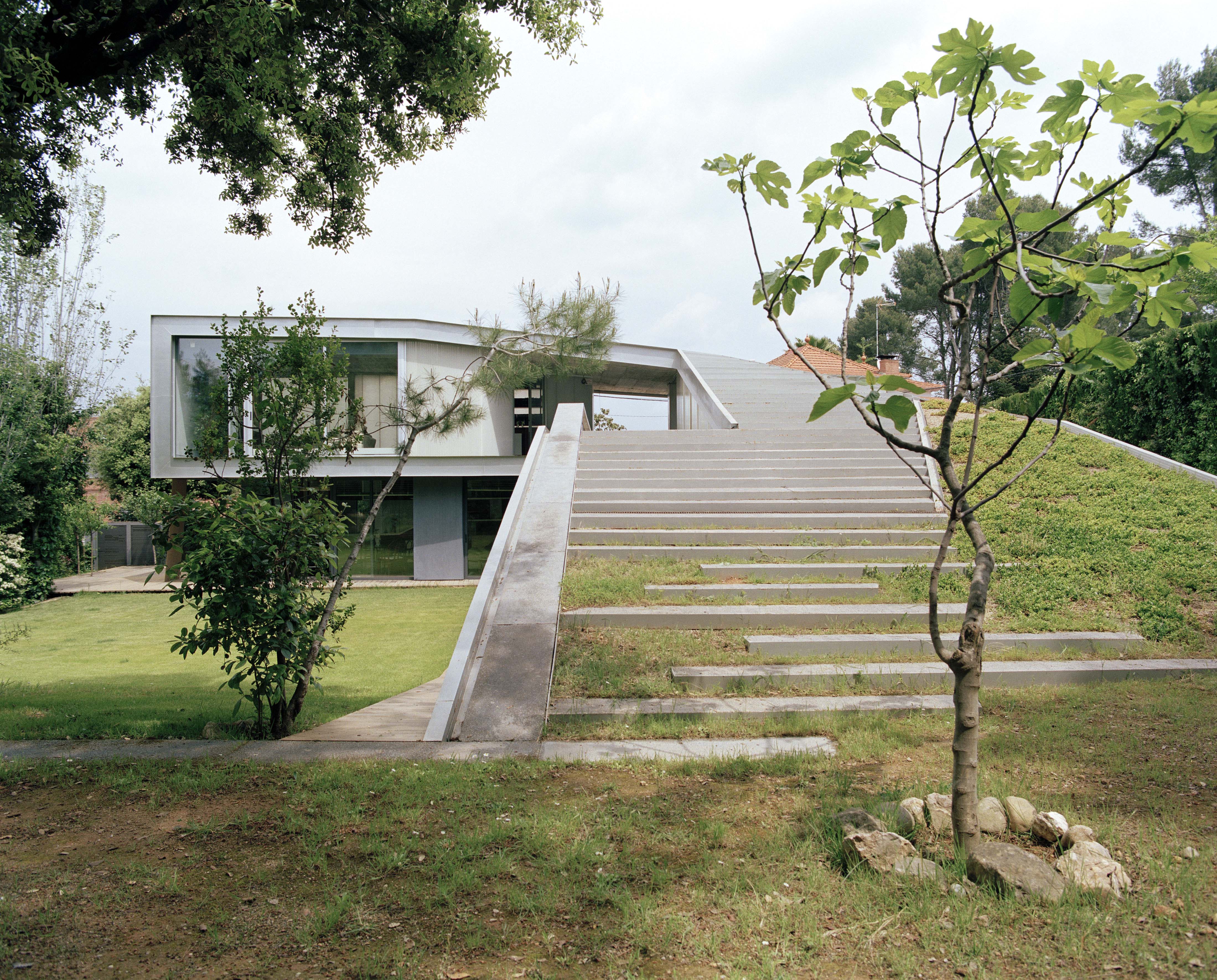

Garden merging into roof

    Download Original

  • Garden merging into roof
  • Exterior view
  • Cantilevered lounge area
  • Ground floor entrance
  • Jatoba wood surfaces
  • Pigmented concrete black flooring
  • Interior corridor
  • Interior ceiling
  • Interior window and ceiling
  • Plan at first floor showing pavilions
  • Cross section
  • Cross section
  • Axonometric
  • Garden to roof transition area under construction
  • Cantilevered lounge area under construction
  • Under construction, contrast between floors
  • Second floor under construction

Residential villa outside Barcelona, Spain

The exterior is defined by translucent polycarbonate walls, whilst the interior is minimalist and subtle: materials include red-brown Jatoba wood in the kitchen, black pigmented concrete flooring in the lounge; the staircase is presented more as a sculpted piece of furniture than a route between floors.

The garden extends into a grassy green roof which also practically functions keeping the temperature cool and even throughout the seasons.

Contrast is intended between the ground and first floors, by a series of unaligned columns and a cantilevered lounge area.

Steel square hollow sections have replaced the monoloithic concrete structure of the initial plan, and the outer walls are composed of clay brick: a typical, cost-effective system for a Spanish villa.


  • Begun: 2004
  • Completed: 2006
  • Floor area: 1,000m2
  • Sector: House
  • Total cost: £259,000
  • Tender date: 2003
  • Procurement: Spanish building work contract
  • Address: Villa Valldoreix, St Cugat del Vallès, Valldoreix, Barcelona, 08197, Spain
