Digby Road

Davy Smith Architects, London, 2011



Subscribe now to instantly view this image

Subscribe to the Architects’ Journal (AJ) for instant access to the AJ Buildings Library, an online database of nearly 2,000 exemplar buildings in photographs, plans, elevations and details.

Already a subscriber? Sign in



Lyndon Douglas (website)     Download Original

  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  • Ground Floor Plan
  • Fourth floor plan
  • Sixth Floor Plan
  • Roof plan
  • Section A-A
  • Section B-B
  • 3D Model
  • Facade section detail
  • Window pod detail
  • Green wall detail
  • Canopy Detail

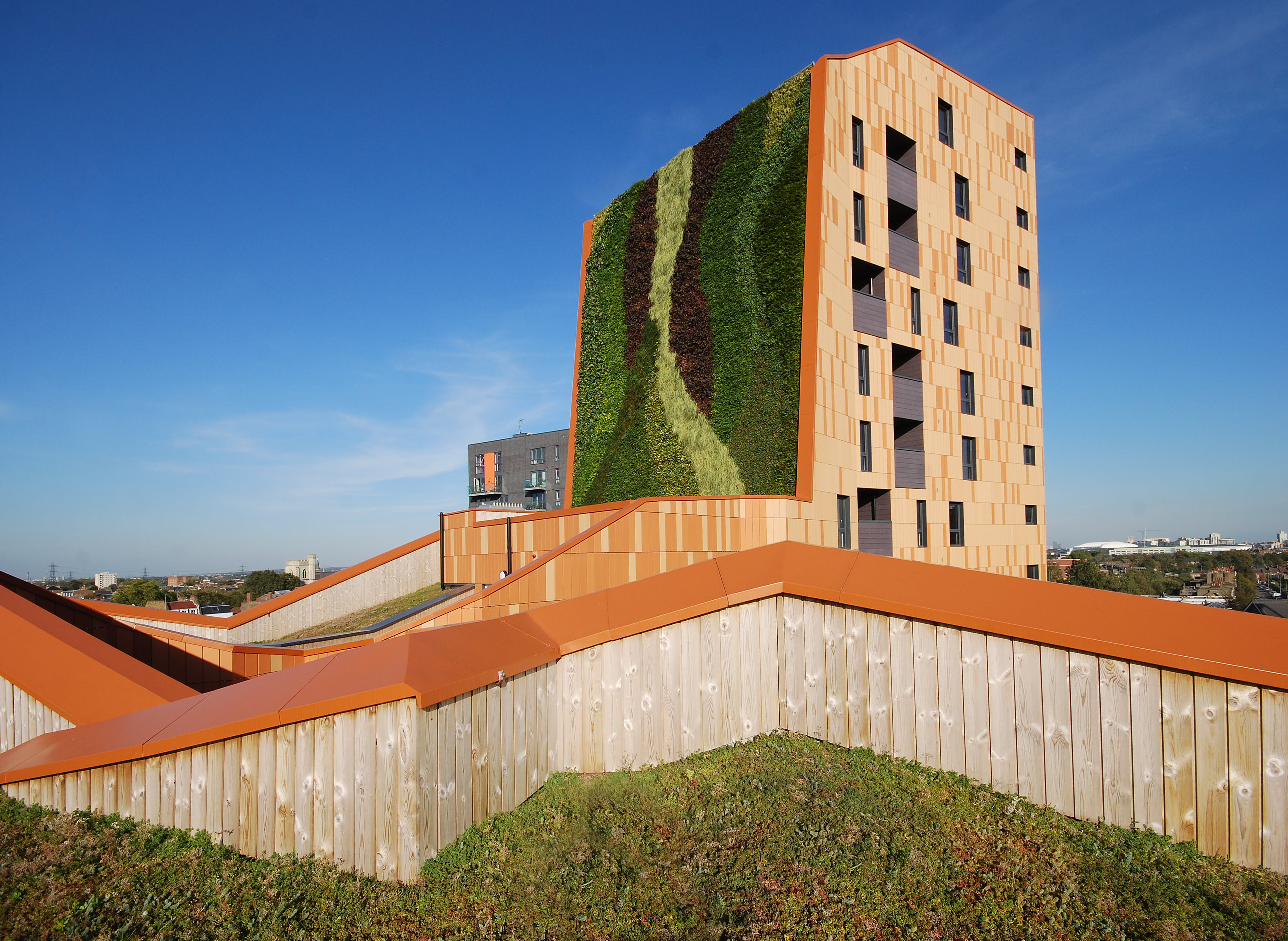

Terracotta clad residencial block and 14 story tower with a west-facing living wall

The five-storey V-shaped block terminates in a 14 storey tower. The 97, mostly double-aspect, affordable and social rented flats are a mix of one, two, three and four bedroom flats. This mix includes duplex flats and family units at lower level, with 10 per cent suitable for disabled residents.

The building's terracotta rainscreen, which gives the development a distinct identity, is made using use three slightly different standard tile colours, ranging from ochre to orange with lighter tile colours used for the courtyard elevations.

The west face of the tower is covered with a 220m2 living wall, that inclines three degrees from the vertical and extends from the sixth floor roof terrace to the top of the tower. The development also contains 350m2 of undulating sedum beds on the sixth floor, a biomass boiler, communal heating,

All windows are framed by aluminium pods that help to form tidy connections with the EPDM waterproofing and the breather membrane. Windows looking on to the railway are double-glazed, as everywhere else, but have thicker glass to keep noise out.

Data

  • Begun: Sep 2009
  • Completed: Nov 2011
  • Floor area: 7,944m2
  • Sector: Residential
  • Total cost: £21M
  • Procurement: Design & Build
  • Address: Digby Road, Hackney, London, E9 6HX, United Kingdom
