Office Building Centraal Beheer

Herman Hertzberger, The Netherlands, 1972



Subscribe now to instantly view this image

Subscribe to the Architects’ Journal (AJ) for instant access to the AJ Buildings Library, an online database of nearly 2,000 exemplar buildings in photographs, plans, elevations and details.

Already a subscriber? Sign in



Herman Hertzberger     Download Original

  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  • Plan at level zero - car parking and semi basement
  • Plan at level one - car parking and main entrances
  • Level two plan
  • Level three plan
  • Columns and voids (level four plan)
  • Circulation and structure grids define spacial arrangements
  • Section A-A
  • Section
  • Diagram showing how office space can be used in different ways
  • Building form

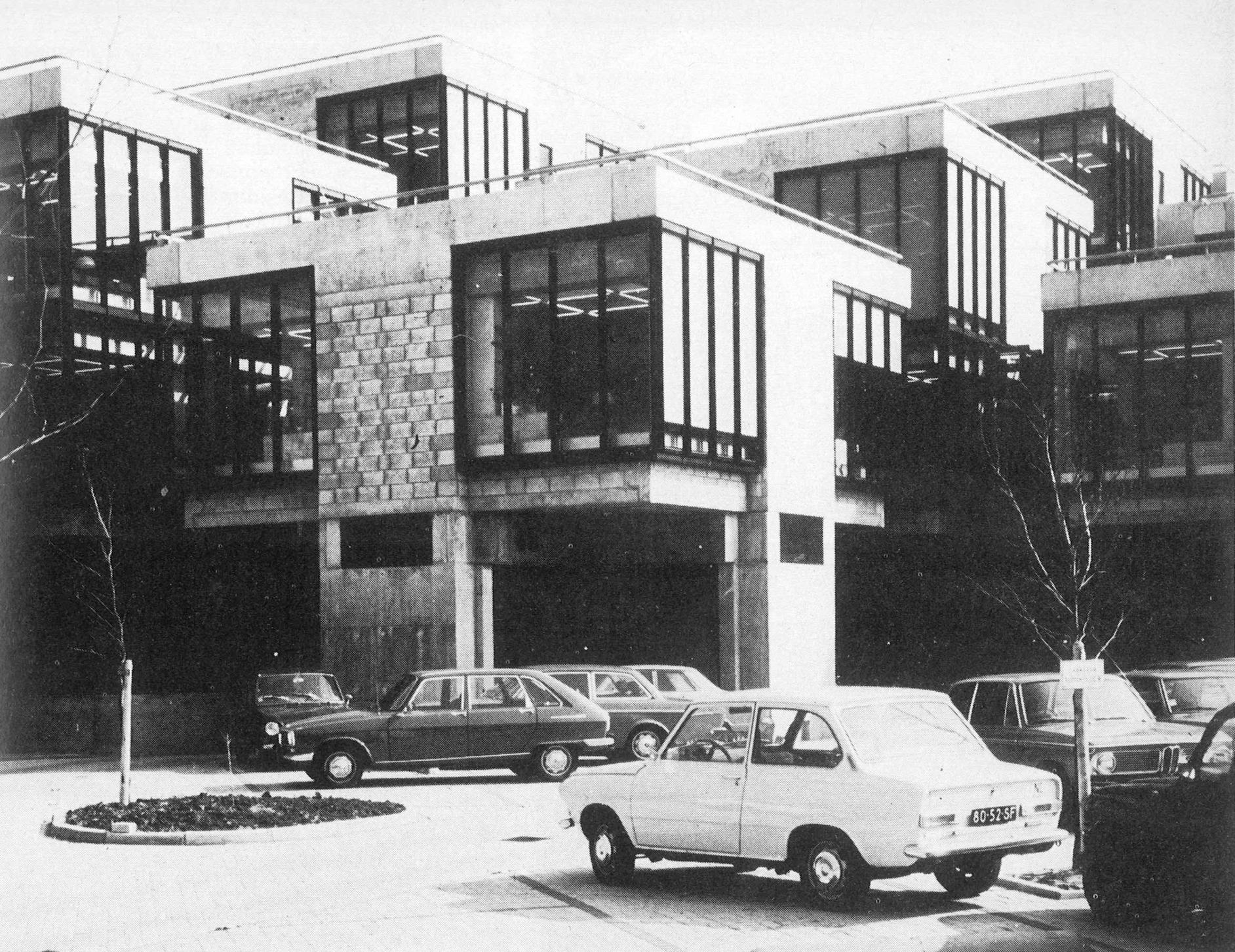

Structuralist office building for Centraal Beheer Insurance Company, consisting of a collection of interpretable spatial units in open plan linked by a central core

The office building consists of 56 cubic elements of nine meters by nine meters, located around a core containing the lifts, stairs and bathrooms. In each block there are four of these elements per floor with a gap of three metres between them for human traffic. These larger structures are grouped into four quadrants of office space; north, south, east and west, and are held together by a central core containing the social centre of the building.

Each element is designed to be flexible and subject to the individual freedoms of its inhabitants. The building has an inter-penetrating grid of circulation and structure that leaves space for interpretable zones which can be modified for different purposes.

The building is constructed from concrete blocks, in combination with a visible supporting structure of precast concrete. The bottom floor houses the car park and the structure of this level is rotated 45 degrees relative to the superstructure.

Data

  • Begun: 1968
  • Completed: 1972
  • Sector: Office
  • Address: Prins Willem Alexanderlaan 651, Apeldoorn, Gelderland, The Netherlands, Netherlands
