Capel Manor House Guest Pavilion

Ewan Cameron Architects, Horsmonden, Kent, 2011



Subscribe now to instantly view this image

Subscribe to the Architects’ Journal (AJ) for instant access to the AJ Buildings Library, an online database of nearly 2,000 exemplar buildings in photographs, plans, elevations and details.

Already a subscriber? Sign in

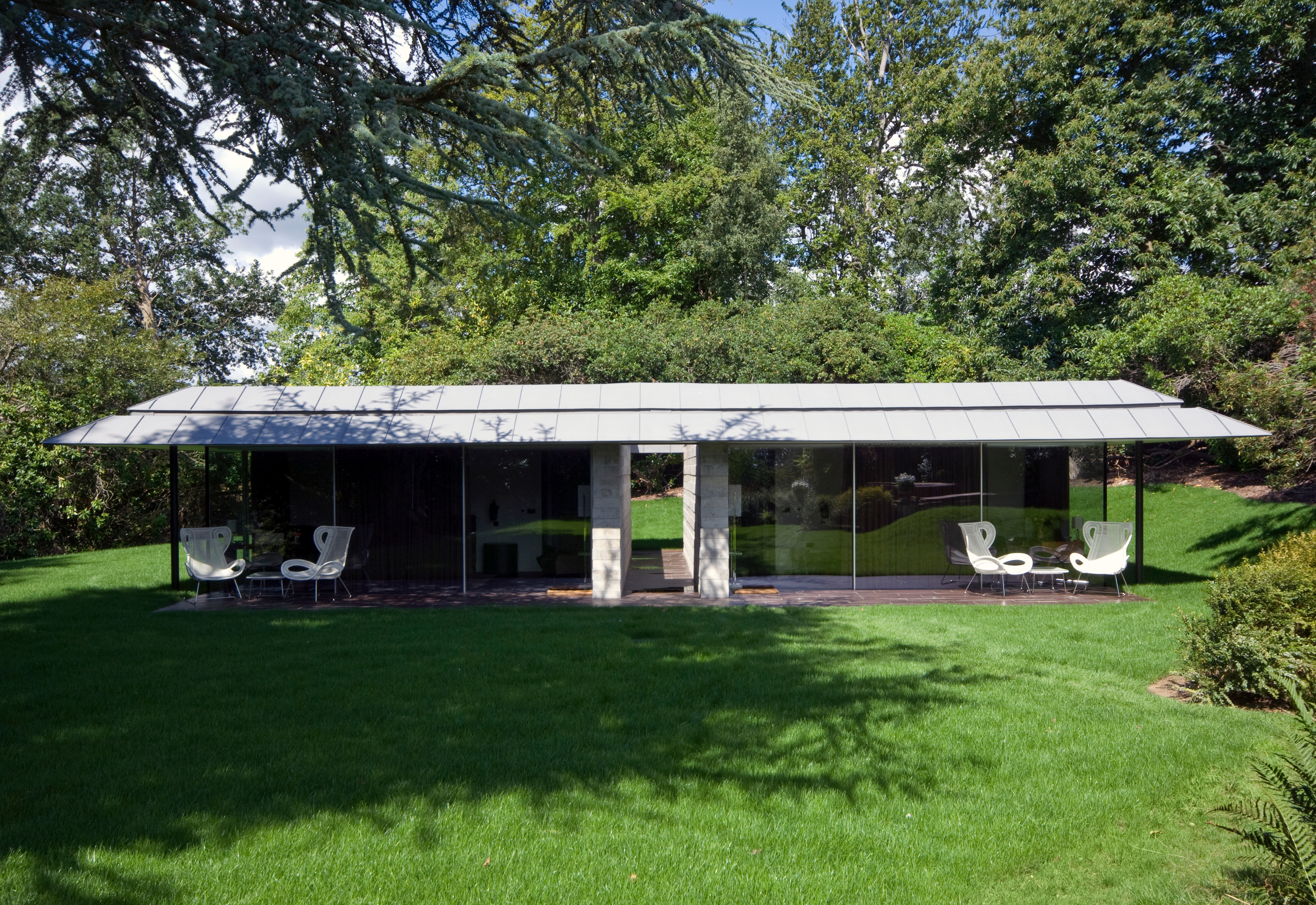

Front elevation

Henryk Hetflaisz     Download Original

  • Front elevation
  • North west corner
  • Jaipur marble bath
  • Bedroom
  • West elevation
  • South west corner
  • West elevation (night)
  • South elevation (night)
  • Central walkway
  • Corner detail
  • View from orangery
  • Site plan
  • Ground floor plan
  • Roof plan
  • Elevations
  • Detail section
  • Canopy detail section

The brief was to design a guest pavilion comprising two suites adjacent to an Italianate orangery from 1860, on the grounds of Capel Manor House, an iconic 1960s Modernist pavilion designed by Michael Manser

The simple rear facade of the pavilion is first glimpsed from a secluded woodland passageway.
 The building then offers an invitation: a passageway through its centre, which is open to the sky, presenting a dramatic event on a walk through the garden. This passageway is formed by two spine walls cast in Béton Brut concrete.

These massive walls contrast with the lighter zinc-clad roof and glass elements, while the wood grain of the timber shuttering echoes the woodland context.

Data

  • Begun: Jan 2011
  • Completed: Sep 2011
  • Floor area: 90m2
  • Sector: House
  • Total cost: £245,000
  • Tender date: Sep 2010
  • Procurement: Minor Works Contract
  • Address: Capel Manor House, Grovehurst Lane, Horsmonden, Kent, TN12 8BG, United Kingdom
