Leith Fort Housing

Shaw-Stewart, Baikie & Perry
Leith, 1966

Subscribe now to instantly view this image

Subscribe to the Architects’ Journal (AJ) for instant access to the AJ Buildings Library, an online database of nearly 2,000 exemplar buildings in photographs, plans, elevations and details.

Already a subscriber? Sign in

View from North west showing all three types of housing

    Download Original

  • View from North west showing all three types of housing
  • Upper part of grampian house

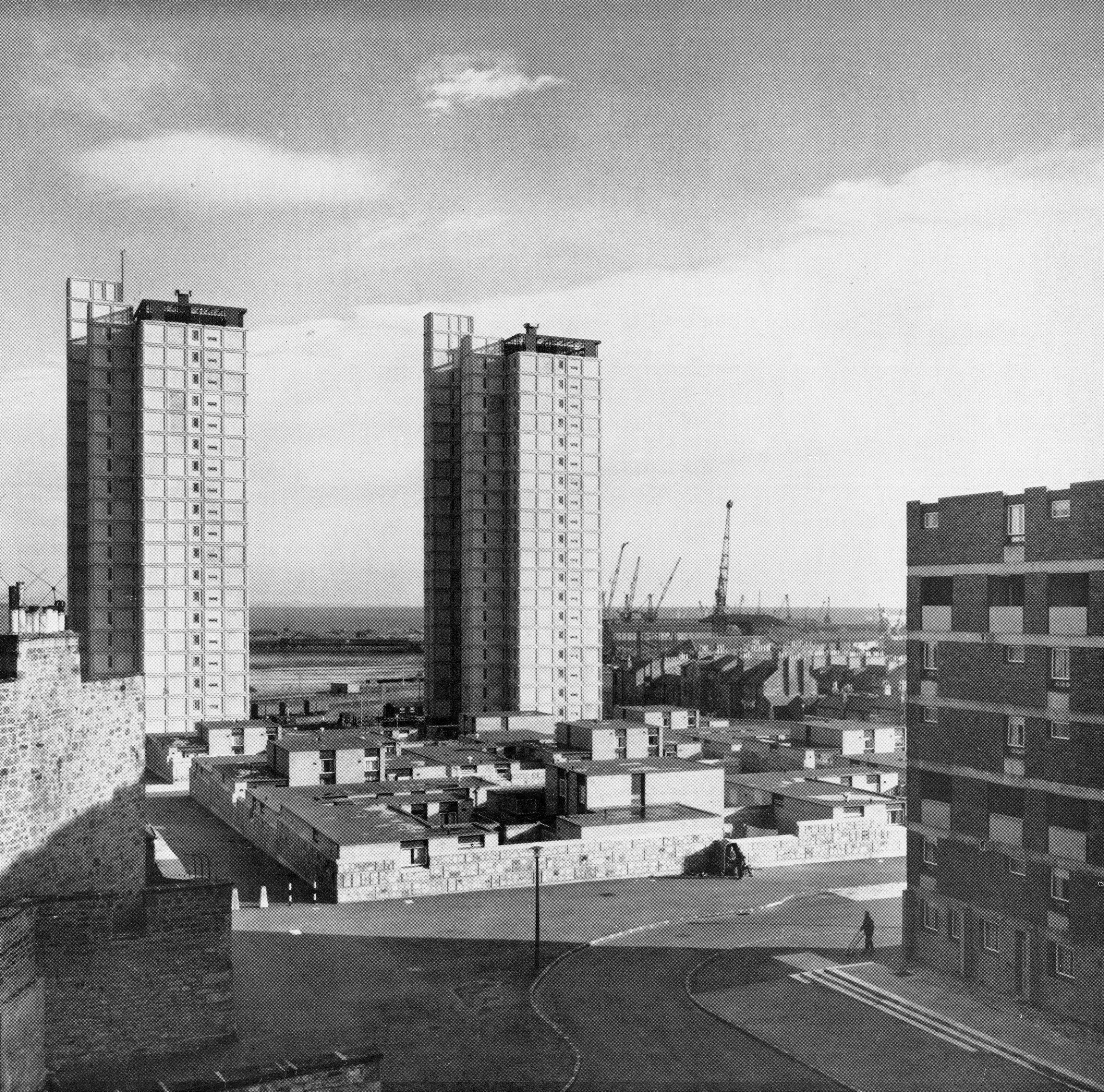

  • The two tower blocks
  • View towards the river from the centre of the site
  • View from lindsay road on the north east corner of the site
  • View along access road to the south
  • Gate of the old fort with housing behind
  • Passage between two blocks of housing
  • View from across the river forth
  • Site plan
  • Seven story housing ground floor plan
  • Seven story housing first floor plan
  • Tower block access level plan
  • Tower block podium level plan
  • Two storey housing plan
  • Lower floor of typical maisonette plan
  • Upper floor of typical maisonette plan

Data

  • Completed: 1966
  • Sector: Residential
  • Address: Leith Fort, North Fort Street, Leith, EH6 4AY, United Kingdom

Professional Team

Suppliers

Housing scheme in Edinburgh comprising of several high-rise blocks looking over the Firth of Forth

In total there are a total of 357 houses in twenty five house-types built inside and retaining the guard houses and walls of an 18th century building by James Craig.

The scheme comprises of one and two storey courtyard houses, two seven-storey and two 21-storey buildings with a podium building between.

The open area at the south end of the site is occupied by the seven-storey buildings. These provide a link in scale with the surrounding tenements.

On the ground floor of the twenty-one storey buildings are shops, a water-pumping room, switch-rooms, an electrical sub-station and garages. On the first floor, at podium level, are the lift waiting halls and launderettes.

The 19 storeys of houses are made up of interlocking three-storey units with four flats at the middle access level, and access to two marionettes above and two below.

The high-rise buildings were constructed insitu in concrete with precast concrete cladding applied without the use of scaffolding.
