Heron Tower

Kohn Pedersen Fox, London, 2011



Subscribe now to instantly view this image

Subscribe to the Architects’ Journal (AJ) for instant access to the AJ Buildings Library, an online database of nearly 2,000 exemplar buildings in photographs, plans, elevations and details.

Already a subscriber? Sign in



Hufton + Crow (website)     Download Original

  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  • Site plan
  • Ground floor plan
  • Level 2 plan
  • Level 5 plan
  • Level 6 plan
  • Level 38 plan - restaurant
  • Elevation
  • Elevation
  • Elevation
  • Elevation
  • Elevation with context
  • Elevation with context
  • Elevation with context
  • Elevation with context
  • North elevation during construction
  • The east and west elevations have ventilated facades
  • Facade mock-up showing how the south facade is hung from steel outriggers
  • Facade mock-up showing a bracket in the lift shaft
  • Facade mock-up of the south facade showing photovoltaic cells
  • Facade mock-up close up of external bracing bottom node
  • Facade mock-up stainless steel cladding of bracing element
  • Facade mock-up stainless steel finish and thickness studies
  • Sun path diagram illustrating strategy for facade
  • Facade types 3d map
  • Sketch
  • East and west facade details
  • North facade details
  • North facade details
  • North facade cladding of structural frame
  • Rooftop pavilions facade details
  • Sectional detail through floor edge at village base
  • Internal facade details at lift lobbies

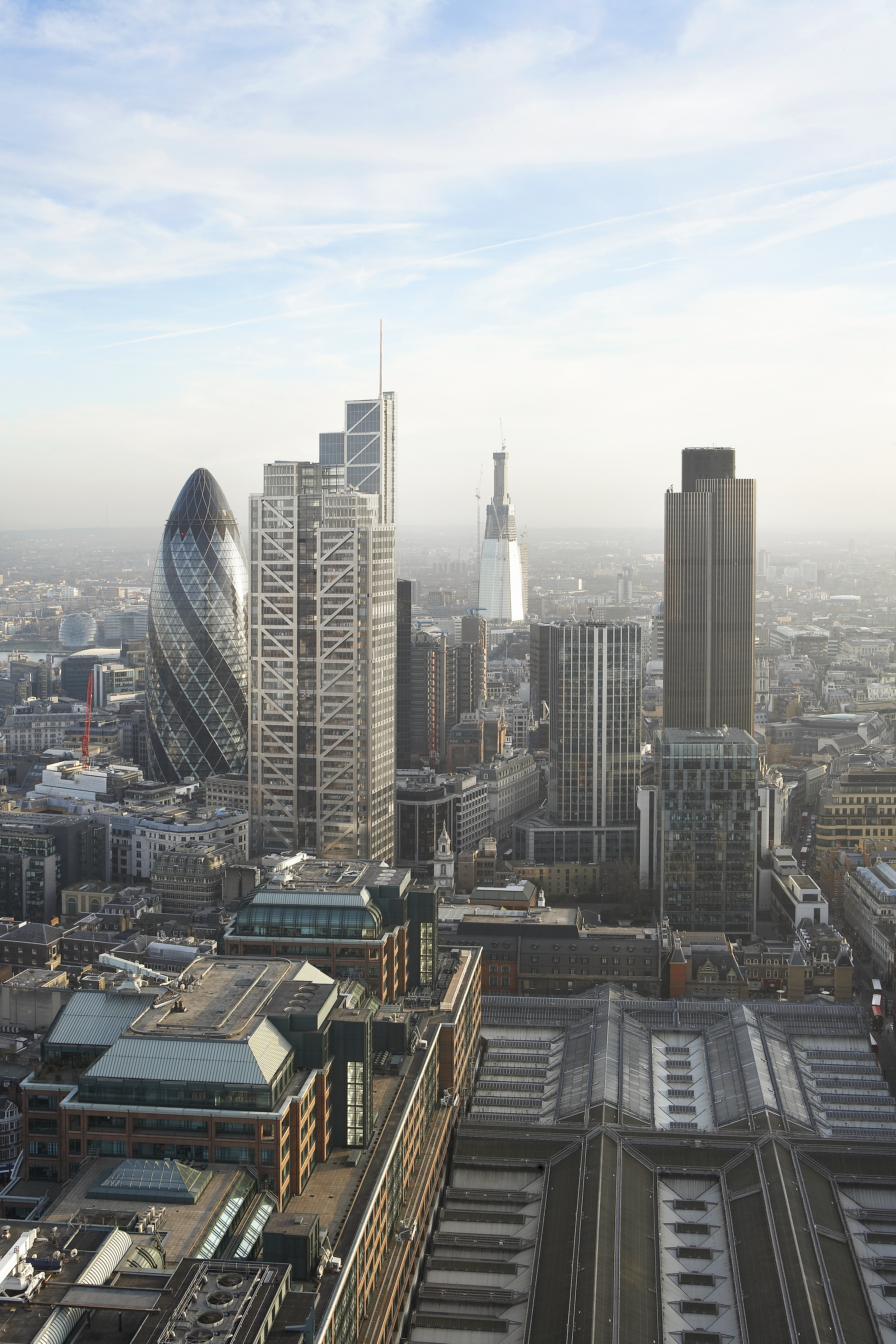

Mixed-use tower on London's Bishopsgate comprising speculative office accommodation with sustainable features

Heron Tower is designed as a series of three-storey ‘villages’ comprising an open plan lower level, with two upper levels arranged around a three-storey high glazed atrium, bringing daylight deep into the plan. Tenants are invited to take a part of a single floor to a number of whole ‘villages’ with connections pre-planned and easily inserted.

In order to open up the maximum available floor-plate the architects positioned the building’s core to the southern edge of the site, also minimising heat gains. Each façade responds differently according to its aspect; the southern façade is most closed, the northern most open and an intermediate condition exists on the eastern and western faces.

Additional shading is provided to the southern façade with the integration of photovoltaic cells, which provide for around 2.5 percent of the building’s total energy requirement.

Public space includes a publicly accessible penthouse restaurant and a three-storey covered arcade along Bishopsgate, housing a café and shops. This arcade is scaled with reference to nearby St. Botolph’s Church, and links views of the ground floor atrium with a new garden space on Houndsditch Street.

Data

  • Begun: Oct 2007
  • Completed: Mar 2011
  • Floor area: 66,260m2
  • Sectors: Office, Retail
  • Tender date: Jan 2006
  • Procurement: JCT major works two-stage tender
  • CO2 Emissions: 34.1kg/m2/year
  • Address: 110 Bishopsgate, London, EC2M 4AX, United Kingdom
